隔膜阀 | PBDV2系列(Pneumatic Type)

PBDV2系列是Primet单体型的标准款式。
阀体采用SUS316L单层熔铸材，金属密封接头（雄&雌）可选择。各种流量样式可供选择。

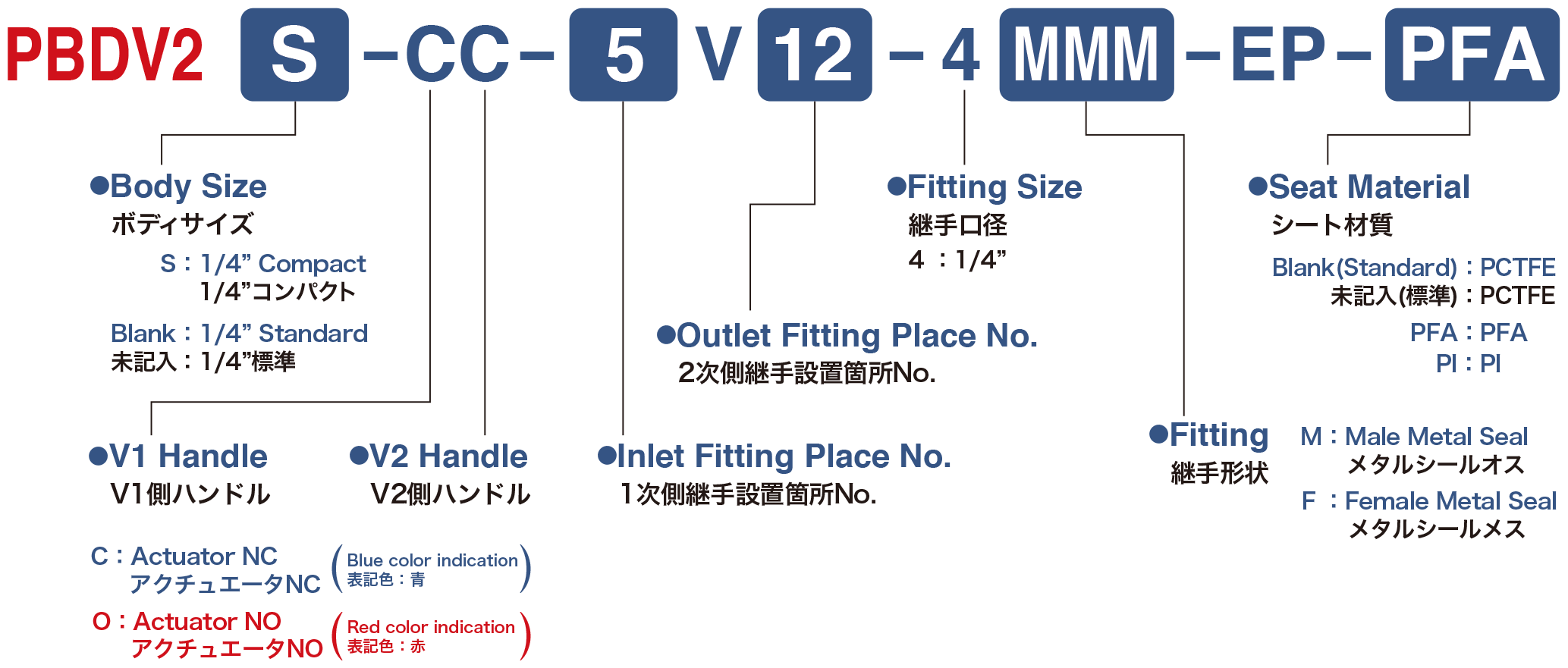

为您的预订提供的规格参数

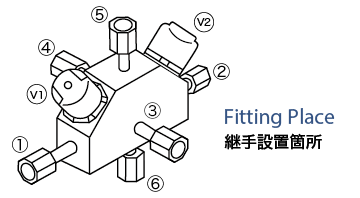

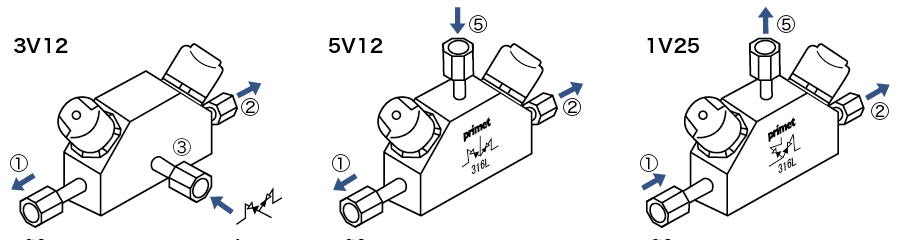

流量样式和预计接头设置位置

款式

Body Size 1/4” Compact 1/4” Standard
Cv value 0.1 0.3
Max.Operating Pressure 1.0MPa(G)
Operating Temp. Range PCTFE : -10～60℃ / PFA, PI : -10～150℃
External Leakage Inboard ≦3×10-12 Pa・m3 ／sec Helium
Across Seat PCTFE, PI :≦3×10-10 Pa・m3 ／sec Helium
PFA :≦3×10-9 Pa・m3 ／sec Helium

模型

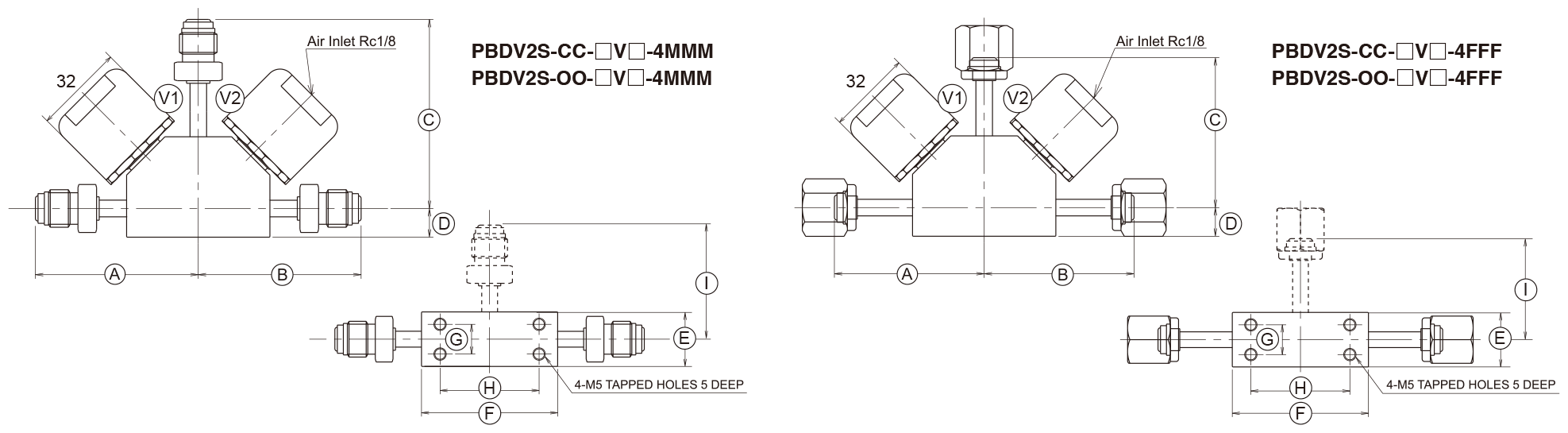

1/4” Compact Size

Unit(mm)
模型 Fitting Size Fitting A B C D E F G H I
PBDV2S-CC-□V□-4MMM
PBDV2S-OO-□V□-4MMM		 1/4″ Male Metal Seal 62.5 62.5 62.5 11 22 55 12 40 45
PBDV2S-CC-□V□-4FFF
PBDV2S-OO-□V□-4FFF		 1/4″ Female Metal Seal 57.5 57.5 57.5 11 22 55 12 40 35

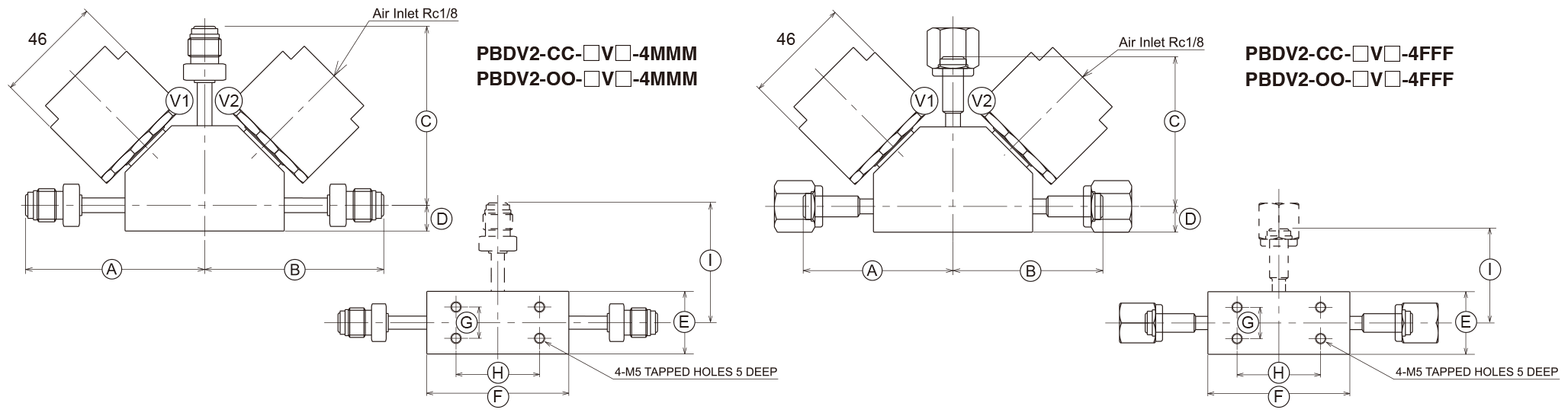

1/4” Standard Size

Unit(mm)
模型 Fitting Size Fitting A B C D E F G H I
PBDV2-CC-□V□-4MMM
PBDV2-OO-□V□-4MMM		 1/4″ Male Metal Seal 76.5 76.5 76.5 11 30 68 15 40 49
PBDV2-CC-□V□-4FFF
PBDV2-OO-□V□-4FFF		 1/4″ Female Metal Seal 64 64 64 11 30 68 15 40 39
※Specification are subjected to change without prior notice.
