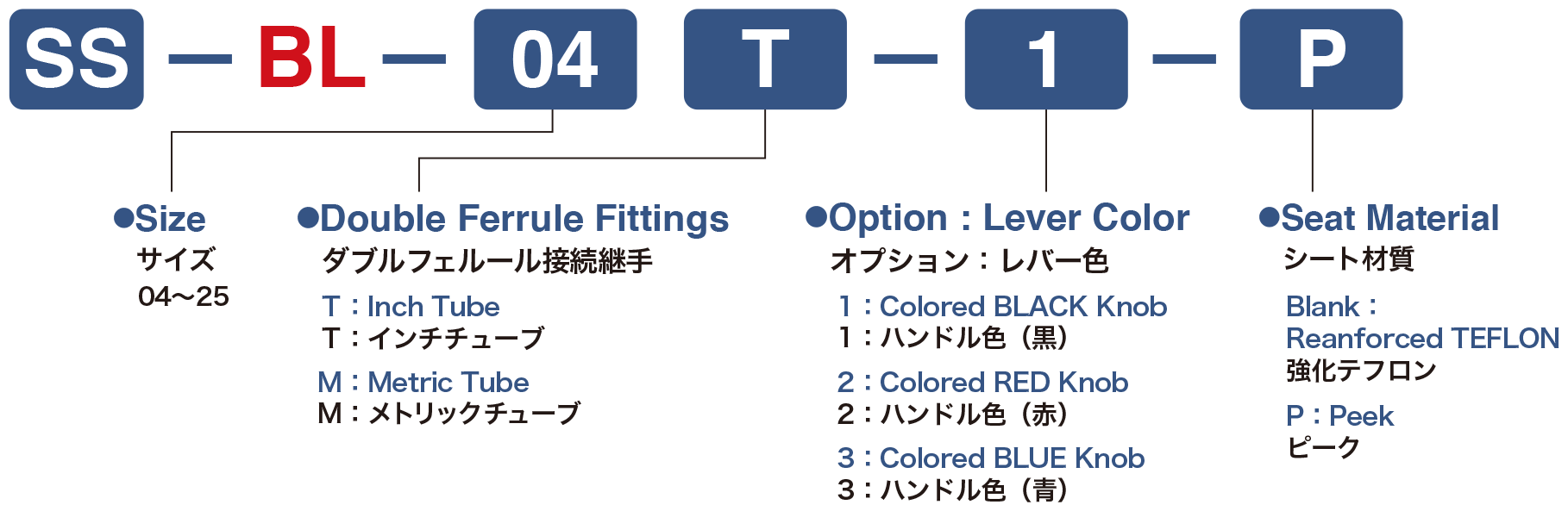

주문을 위한 사양형식
볼 밸브 | BL시리즈

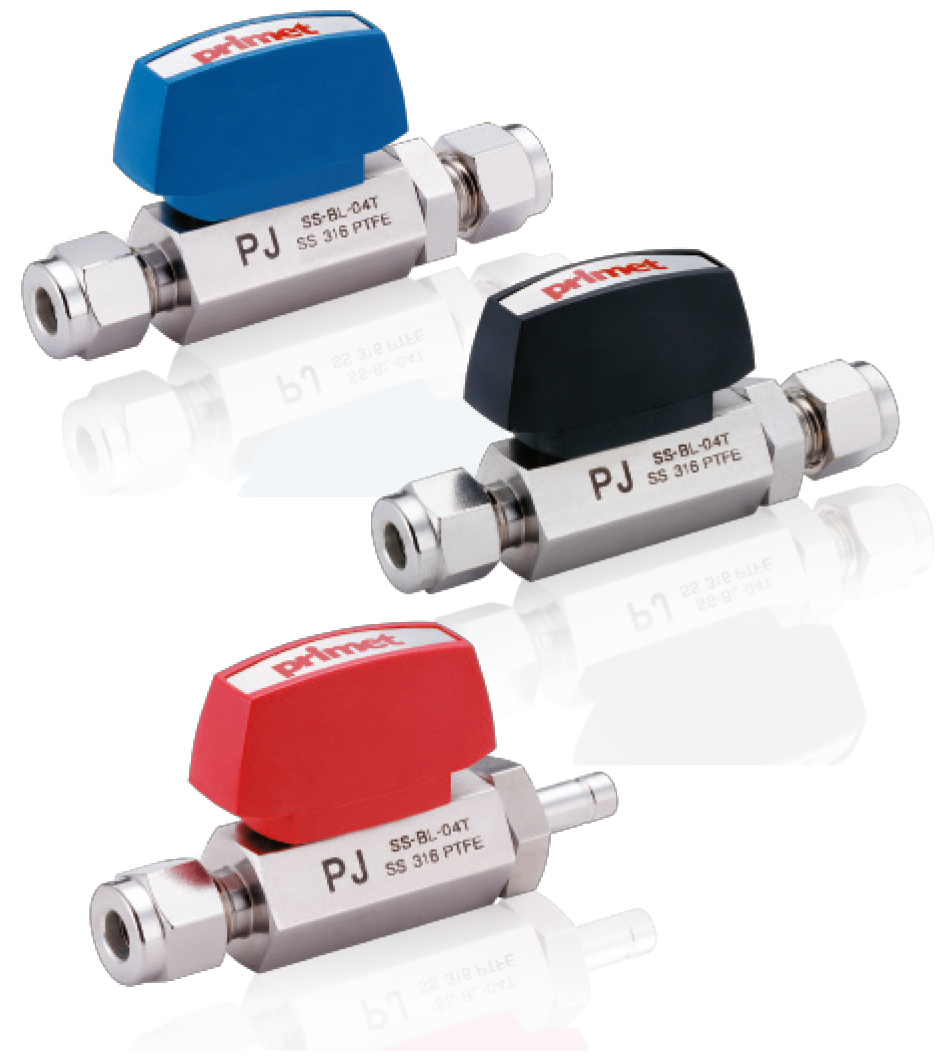

프라이메트 볼 밸브의 BL시리즈는 육각 바디의 볼 밸브입니다。낮은 톨크로도 개,폐가 가능합니다。SUS316 바디로 구성되어、각종 피팅으로도 가능합니다。핸들 칼라는 선택 가능합니다.（검은색,적색,청색）。
Tube O.D. Designation
| Inch Tube | ||||||||
|---|---|---|---|---|---|---|---|---|
| Tube O.D | 1/4″ | 5/16″ | 3/8″ | 1/2″ | 5/8″ | 3/4″ | 7/8″ | 1″ |
| Designations | 04T | 05T | 06T | 08T | 10T | 12T | 14T | 16T |
| Metric Tube | ||||||||
| Tube O.D | 6mm | 8mm | 10mm | 12mm | 15mm | 16mm | 22mm | 25mm |
| Designations | 06M | 08M | 10M | 12M | 15M | 16M | 22M | 25M |
치수규격
| Max.Operating Pressure | 1MPa(G) |
|---|---|
| Operating Temp. Range | -10～80℃ |
| Pressurized Leakage | Less then 0.1 std cc / sec (1MPa) |
※He leak rate serves as an actual value. An inspection serves as an option.
Material
| Part | Material |
|---|---|
| Stem | SUS316 |
| Ball | SUS316/ASTM A276 |
| Seat | REINFORCED TEFLON |
| Nut | SUS316/ASTM A276 |
| Ferrule | SUS316/ASTM A276 |
| Body | SUS316/ASTM A276 |
Dimensions
Unit(mm)
| Model | Orifice | Fitting, Size Inlet Outret |
Dimensions | |||||
|---|---|---|---|---|---|---|---|---|
| (L) | H | W | (D) | C | Hex Size | |||
| SS-BL-06M SS-BL-04T |
5.0 | Double Ferrule, 6mm Double Ferrule, 1/4″ |
80.0 | 32.5 | 41.0 | 16.1 | 17.46 | 14.28 |
| SS-BL-10M SS-BL-06T |
7.5 | Double Ferrule, 10mm Double Ferrule, 3/8″ |
90.0 | 34.5 | 41.0 | 17.0 | 20.6 | 17.46 |
| SS-BL-12M SS-BL-08T |
9.0 | Double Ferrule, 12mm Double Ferrule, 1/2″ |
99.0 | 41.1 | 50.0 | 23.5 | 26.98 | 22.2 |
| SS-BL-16M SS-BL-10T SS-BL-12T |
12.5 | Double Ferrule, 16mm Double Ferrule, 5/8″ |
109.0 | 44.4 | 50.0 | 24.7 | 31.75 | 28.57 |
| Double Ferrule, 3/4″ | 110.0 | |||||||
| SS-BL-16T | 16.0 | Double Ferrule, 1″ | 134.0 | 53.7 | 61.0 | 31.5 | 38.0 | 38.0 |
※치수규격 are subjected to change without prior notice.
