볼 밸브 | BC시리즈

BC시리즈는 프라이메트 볼 밸브의 표준 제품입니다。바디는 SUS316이며、더블 페럴 피팅이 표준입니다。

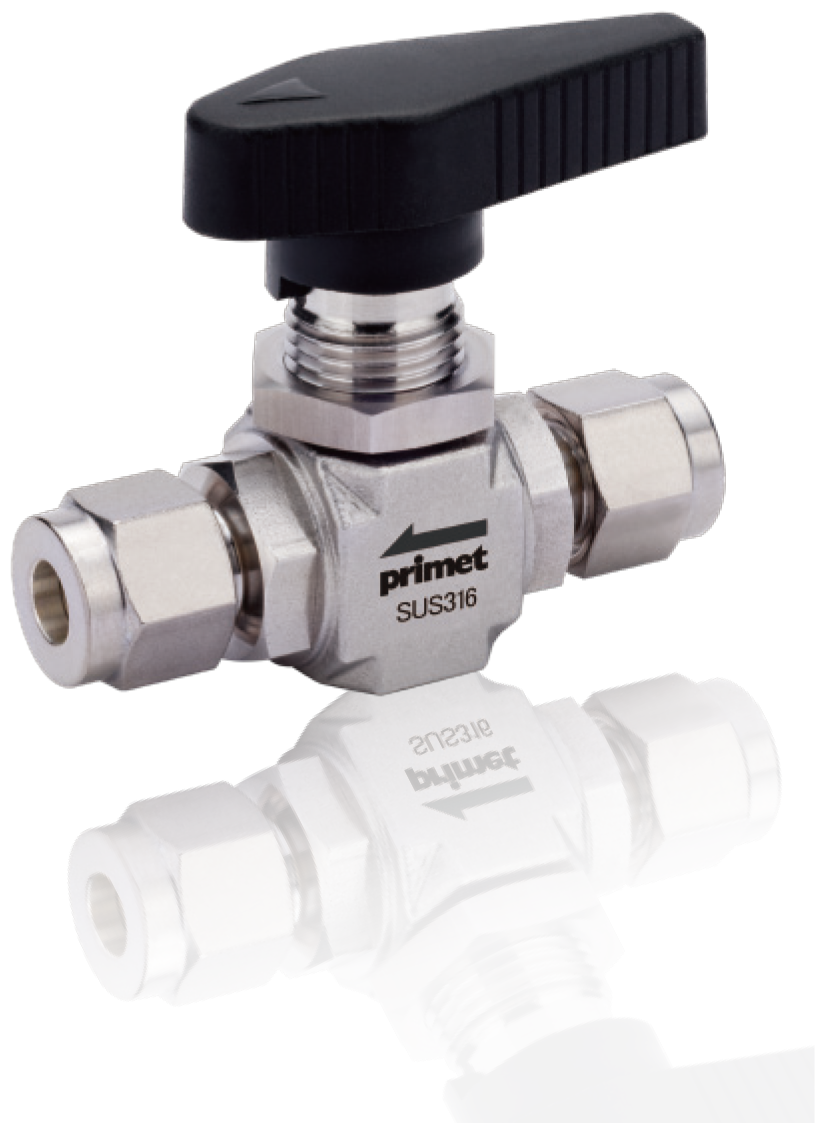

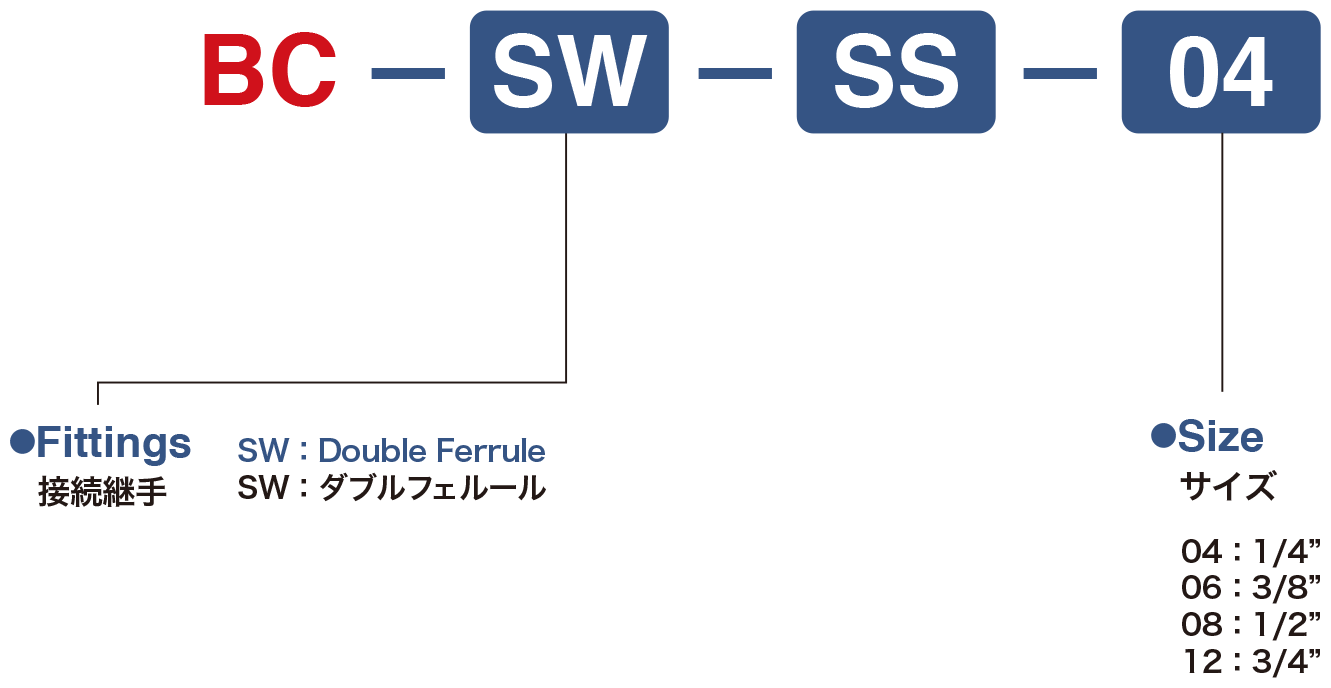

주문을 위한 사양형식

치수규격

Size Size 1/4″ 3/8″ 1/2″ 3/4″
Max.Operating Pressure 5MPa(G)
Operating Temp. Range -10～80℃
Pressurized Leakage Less than 0.1 std cc / sec (5MPa)
He Leakage※ Inboard ≦1.0×10-8 Pa・m3／sec Helium
Across Seat ≦1.0×10-5 Pa・m3／sec Helium
※He leak rate serves as an actual value. An inspection serves as an option.

Material

Part Material
Body SUS316
Seat PTFE
Ball SUS316
Stem SUS316
Handle NYLON

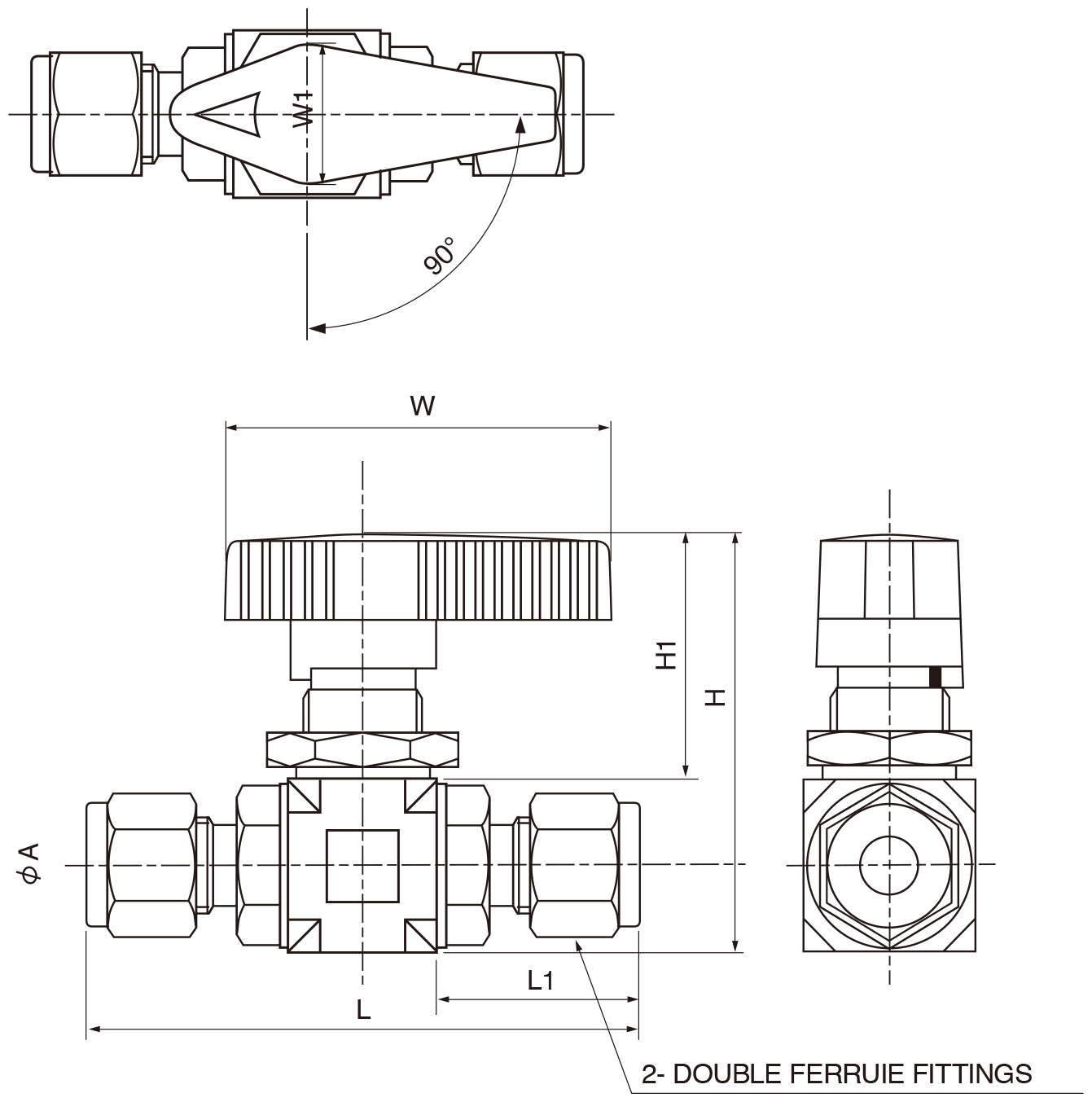

寸法

Unit(mm)
Size Size A L H H1 W L1 W1 ΦPanel Hose
1/4″ 6.35 63.5 48 28 45.5 22 16.6 15.5
3/8″ 9.53 73 56 32 60 26 21.6 17
1/2″ 12.7 82 62 34 60 28.5 21.6 20
3/4″ 19.05 89 67.5 33 67 30.7 25.8 20
※치수규격 are subjected to change without prior notice.
