球形阀 | BC系列

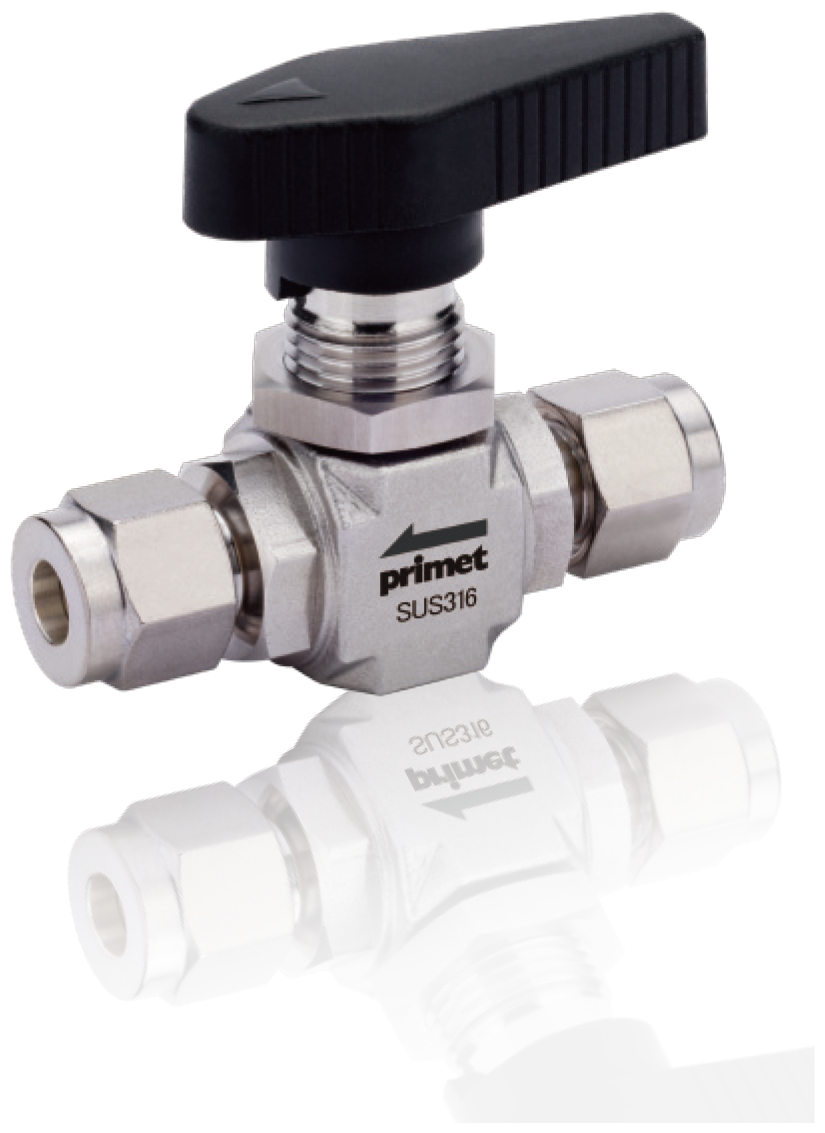

BC系列是作为Primet球形阀系列的标准型来定位的。阀体采用SUS316材质，双套圈接头为标准。

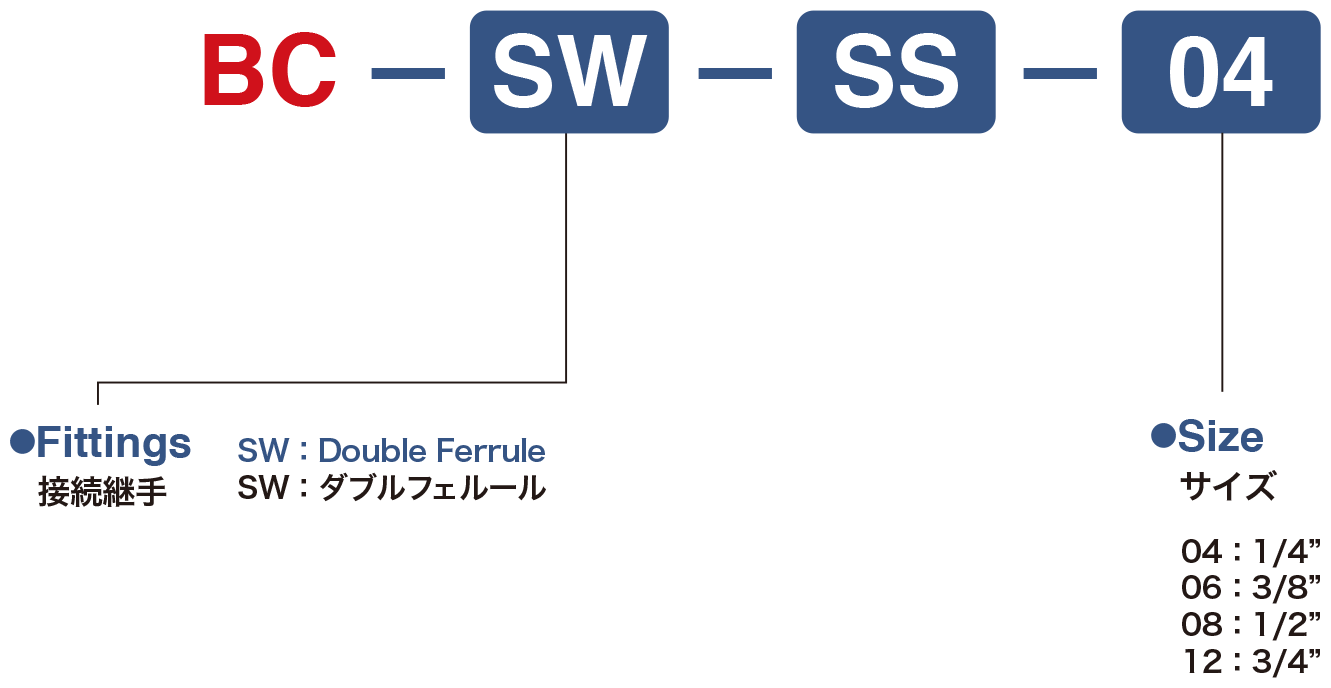

为您的预订提供的规格参数

款式

Size Size 1/4″ 3/8″ 1/2″ 3/4″
Max.Operating Pressure 5MPa(G)
Operating Temp. Range -10～80℃
Pressurized Leakage Less than 0.1 std cc / sec (5MPa)
He Leakage※ Inboard ≦1.0×10-8 Pa・m3／sec Helium
Across Seat ≦1.0×10-5 Pa・m3／sec Helium
※He leak rate serves as an actual value. An inspection serves as an option.

材质

Part 材质
Body SUS316
Seat PTFE
Ball SUS316
Stem SUS316
Handle NYLON

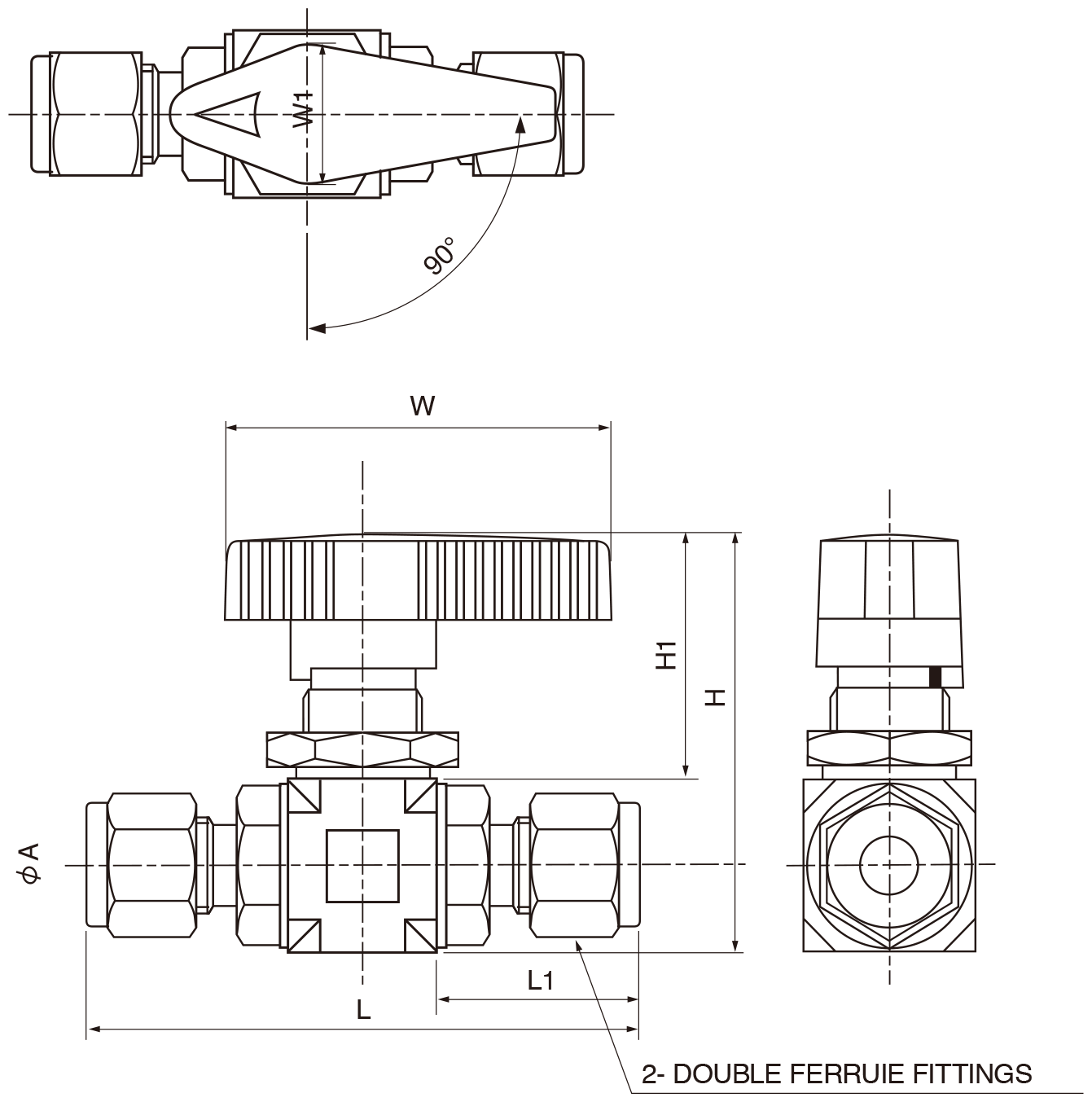

寸法

Unit(mm)
Size Size A L H H1 W L1 W1 ΦPanel Hose
1/4″ 6.35 63.5 48 28 45.5 22 16.6 15.5
3/8″ 9.53 73 56 32 60 26 21.6 17
1/2″ 12.7 82 62 34 60 28.5 21.6 20
3/4″ 19.05 89 67.5 33 67 30.7 25.8 20
※Specification are subjected to change without prior notice.
