球形阀 | BL系列

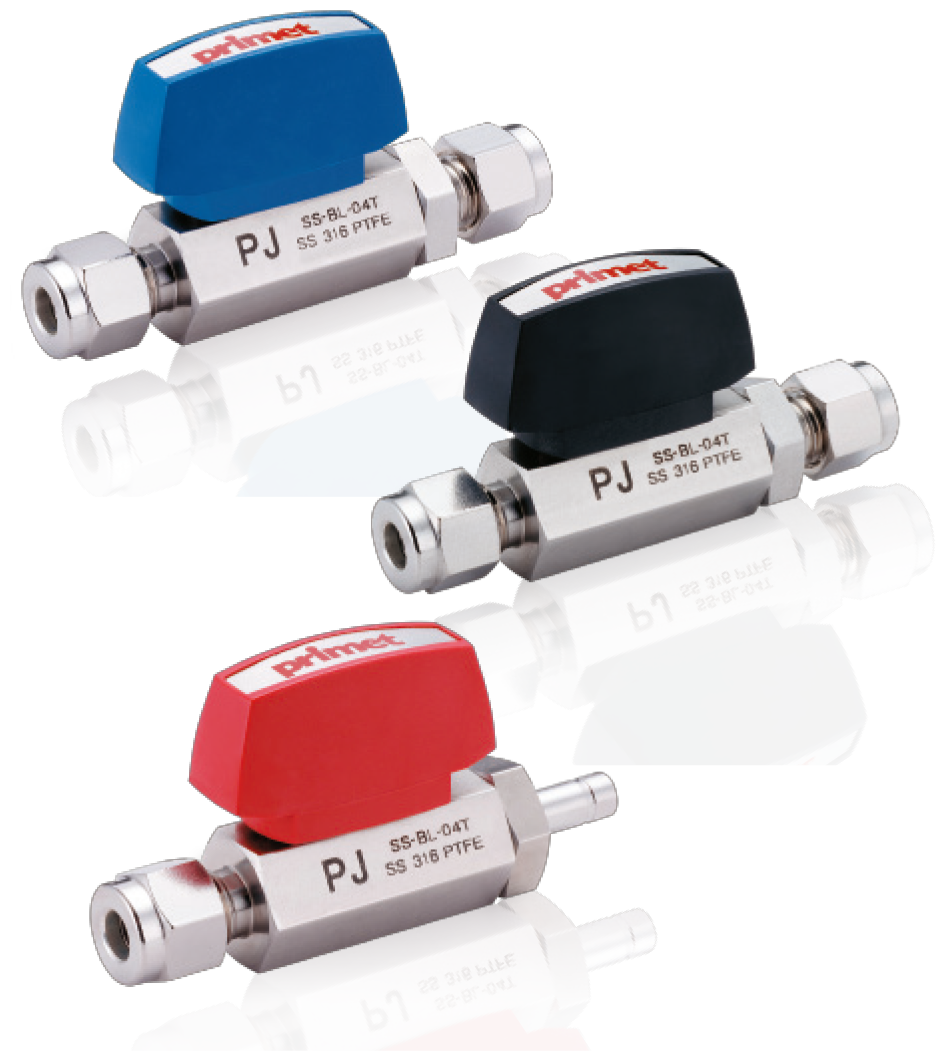

Primet球形阀BL系列是采用六角形阀体的球形阀。可以低扭矩开闭。阀体采用SUS316材构成，各种接头都可选择。把手颜色可以选择（黑、红、蓝色）。

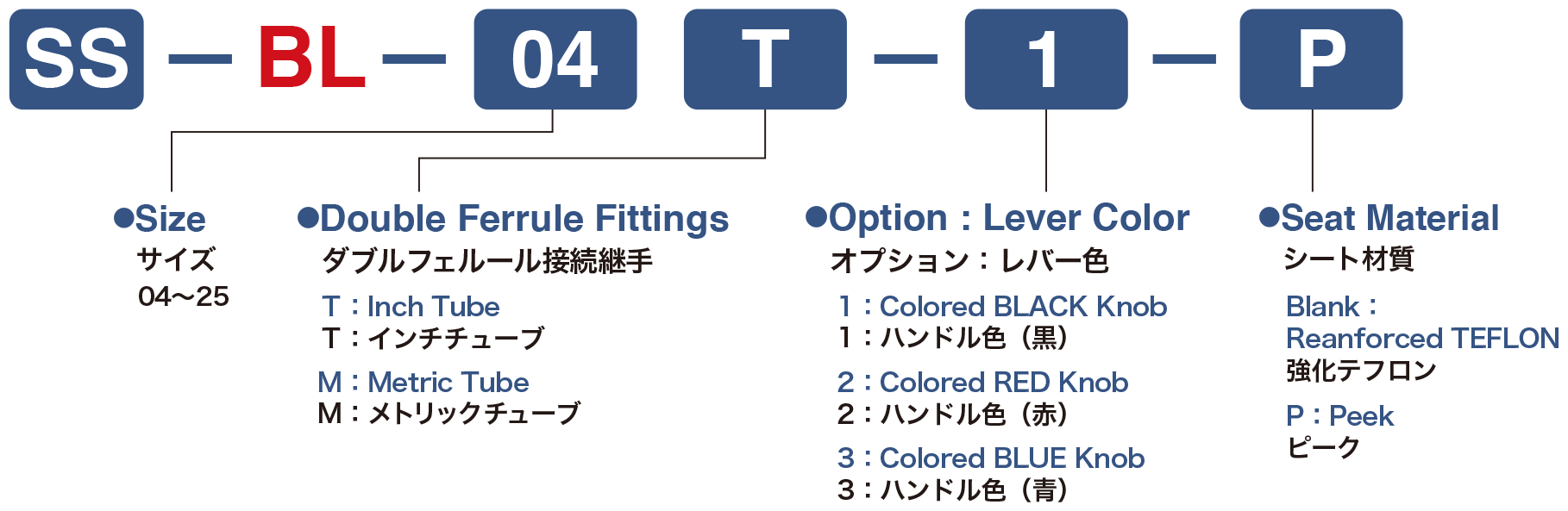

为您的预订提供的规格参数

Tube O.D. Designation

Inch Tube
Tube O.D 1/4″ 5/16″ 3/8″ 1/2″ 5/8″ 3/4″ 7/8″ 1″
Designations 04T 05T 06T 08T 10T 12T 14T 16T
Metric Tube
Tube O.D 6mm 8mm 10mm 12mm 15mm 16mm 22mm 25mm
Designations 06M 08M 10M 12M 15M 16M 22M 25M

款式

Max.Operating Pressure 1MPa(G)
Operating Temp. Range -10～80℃
Pressurized Leakage Less then 0.1 std cc / sec (1MPa)
※He leak rate serves as an actual value. An inspection serves as an option.

材质

Part 材质
Stem SUS316
Ball SUS316/ASTM A276
Seat REINFORCED TEFLON
Nut SUS316/ASTM A276
Ferrule SUS316/ASTM A276
Body SUS316/ASTM A276

Dimensions

Unit(mm)
模型 Orifice Fitting, Size
Inlet Outret		 Dimensions

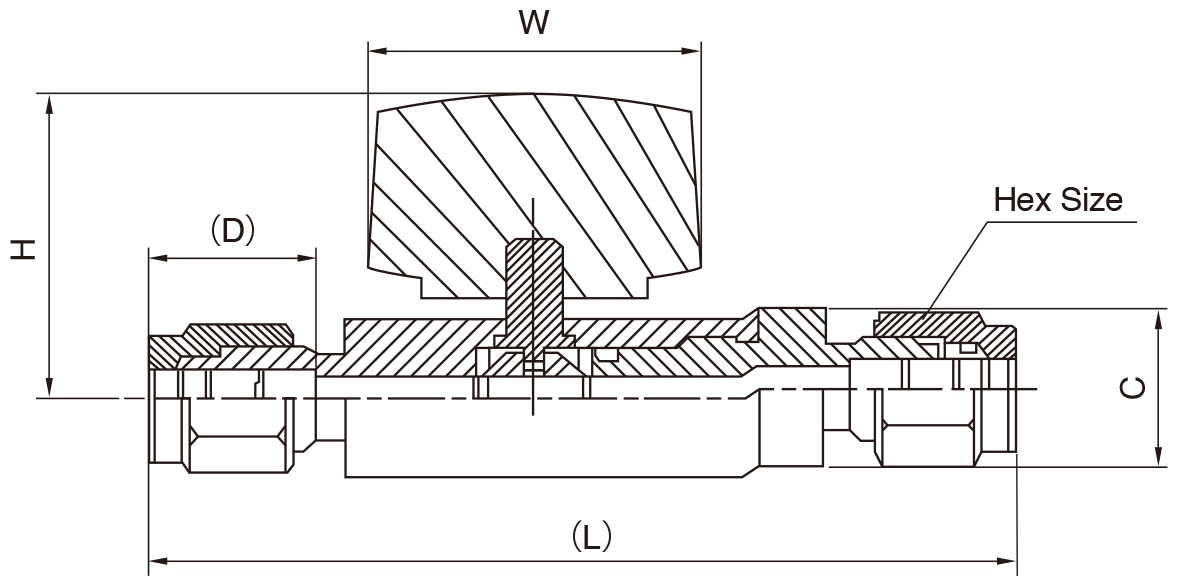

(L) H W (D) C Hex Size
SS-BL-06M
SS-BL-04T		 5.0 Double Ferrule, 6mm
Double Ferrule, 1/4″		 80.0 32.5 41.0 16.1 17.46 14.28
SS-BL-10M
SS-BL-06T		 7.5 Double Ferrule, 10mm
Double Ferrule, 3/8″		 90.0 34.5 41.0 17.0 20.6 17.46
SS-BL-12M
SS-BL-08T		 9.0 Double Ferrule, 12mm
Double Ferrule, 1/2″		 99.0 41.1 50.0 23.5 26.98 22.2
SS-BL-16M
SS-BL-10T
SS-BL-12T		 12.5 Double Ferrule, 16mm
Double Ferrule, 5/8″		 109.0 44.4 50.0 24.7 31.75 28.57
Double Ferrule, 3/4″ 110.0
SS-BL-16T 16.0 Double Ferrule, 1″ 134.0 53.7 61.0 31.5 38.0 38.0
※Specification are subjected to change without prior notice.
