Ball valve | BL Series

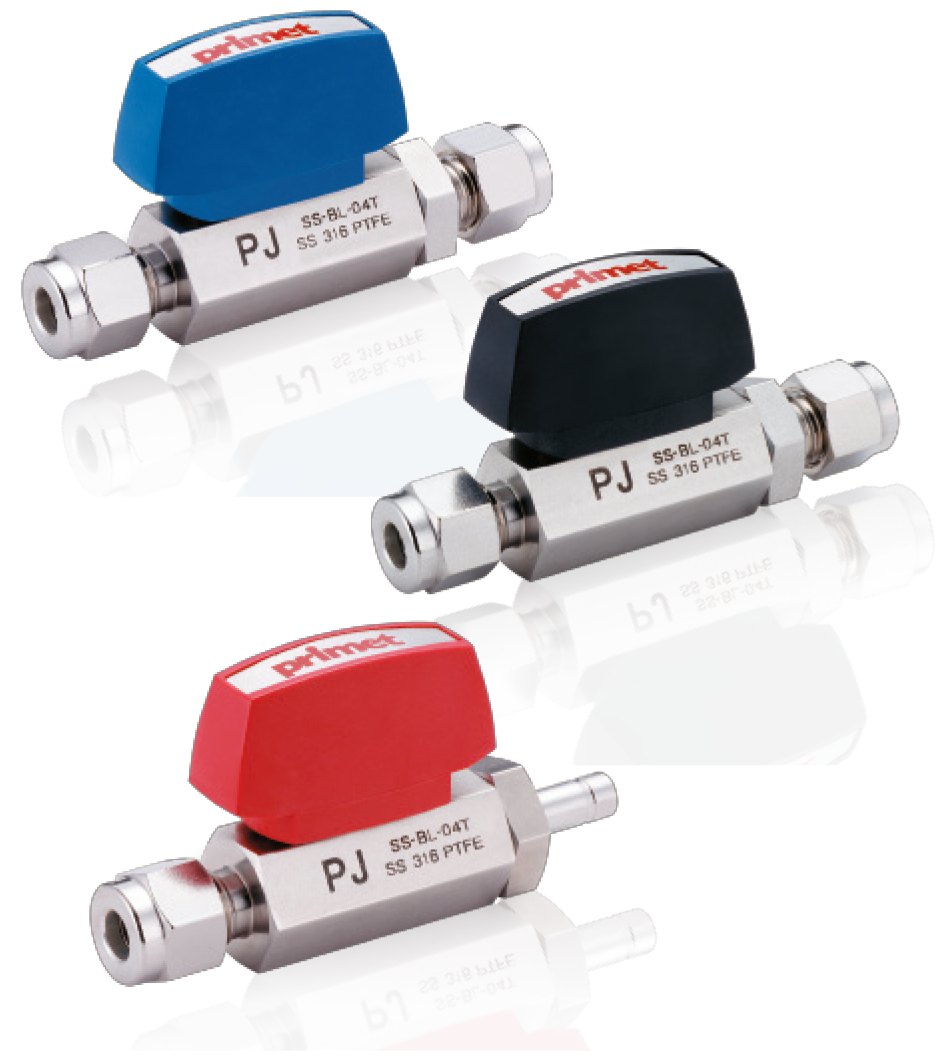

Primet ball valve BL series is designed with one piece hexagon body for high structural strength. Tight shut-off with low torque and quarter-turm quick operation. It has a body made of SUS316 and several types of fitting can be selected. And also handle color can be selected (black, red and blue color).

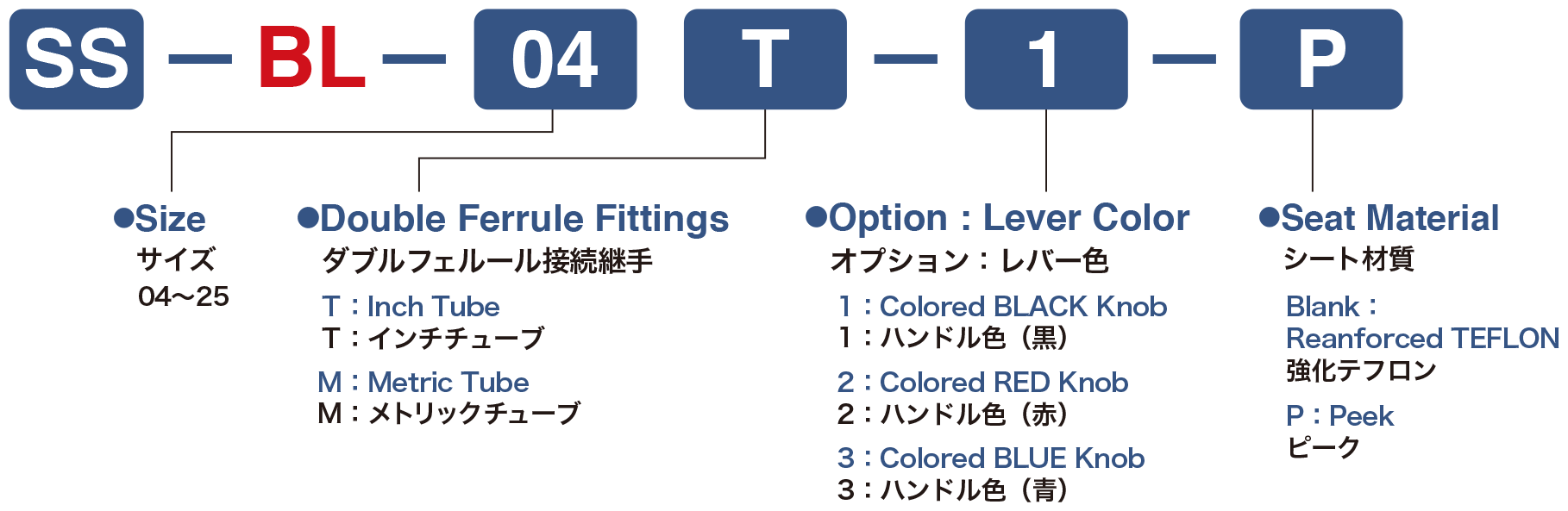

Model specifications for the order request.

Tube O.D. Designation

Inch Tube
Tube O.D 1/4″ 5/16″ 3/8″ 1/2″ 5/8″ 3/4″ 7/8″ 1″
Designations 04T 05T 06T 08T 10T 12T 14T 16T
Metric Tube
Tube O.D 6mm 8mm 10mm 12mm 15mm 16mm 22mm 25mm
Designations 06M 08M 10M 12M 15M 16M 22M 25M

Specification

Max.Operating Pressure 1MPa(G)
Operating Temp. Range -10～80℃
Pressurized Leakage Less then 0.1 std cc / sec (1MPa)
※He leak rate serves as an actual value. An inspection serves as an option.

Material

Part Material
Stem SUS316
Ball SUS316/ASTM A276
Seat REINFORCED TEFLON
Nut SUS316/ASTM A276
Ferrule SUS316/ASTM A276
Body SUS316/ASTM A276

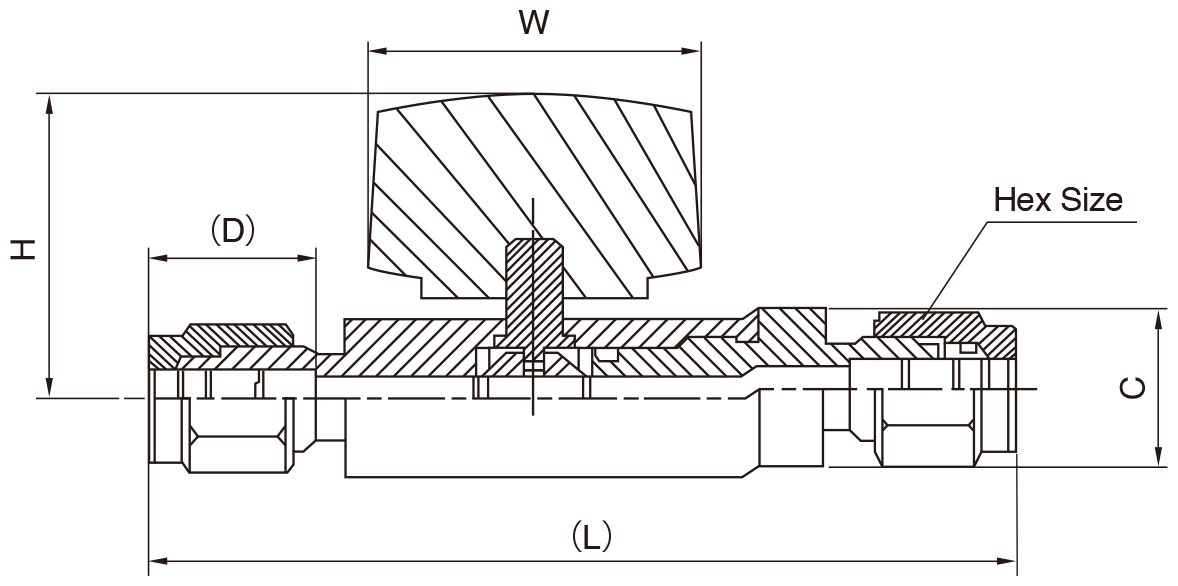

Dimensions

Unit(mm)
Model Orifice Fitting, Size
Inlet Outret		 Dimensions
(L) H W (D) C Hex Size
SS-BL-06M
SS-BL-04T		 5.0 Double Ferrule, 6mm
Double Ferrule, 1/4″		 80.0 32.5 41.0 16.1 17.46 14.28
SS-BL-10M
SS-BL-06T		 7.5 Double Ferrule, 10mm
Double Ferrule, 3/8″		 90.0 34.5 41.0 17.0 20.6 17.46
SS-BL-12M
SS-BL-08T		 9.0 Double Ferrule, 12mm
Double Ferrule, 1/2″		 99.0 41.1 50.0 23.5 26.98 22.2
SS-BL-16M
SS-BL-10T
SS-BL-12T		 12.5 Double Ferrule, 16mm
Double Ferrule, 5/8″		 109.0 44.4 50.0 24.7 31.75 28.57
Double Ferrule, 3/4″ 110.0
SS-BL-16T 16.0 Double Ferrule, 1″ 134.0 53.7 61.0 31.5 38.0 38.0
※Specification are subjected to change without prior notice.
