볼 밸브 | BLW시리즈

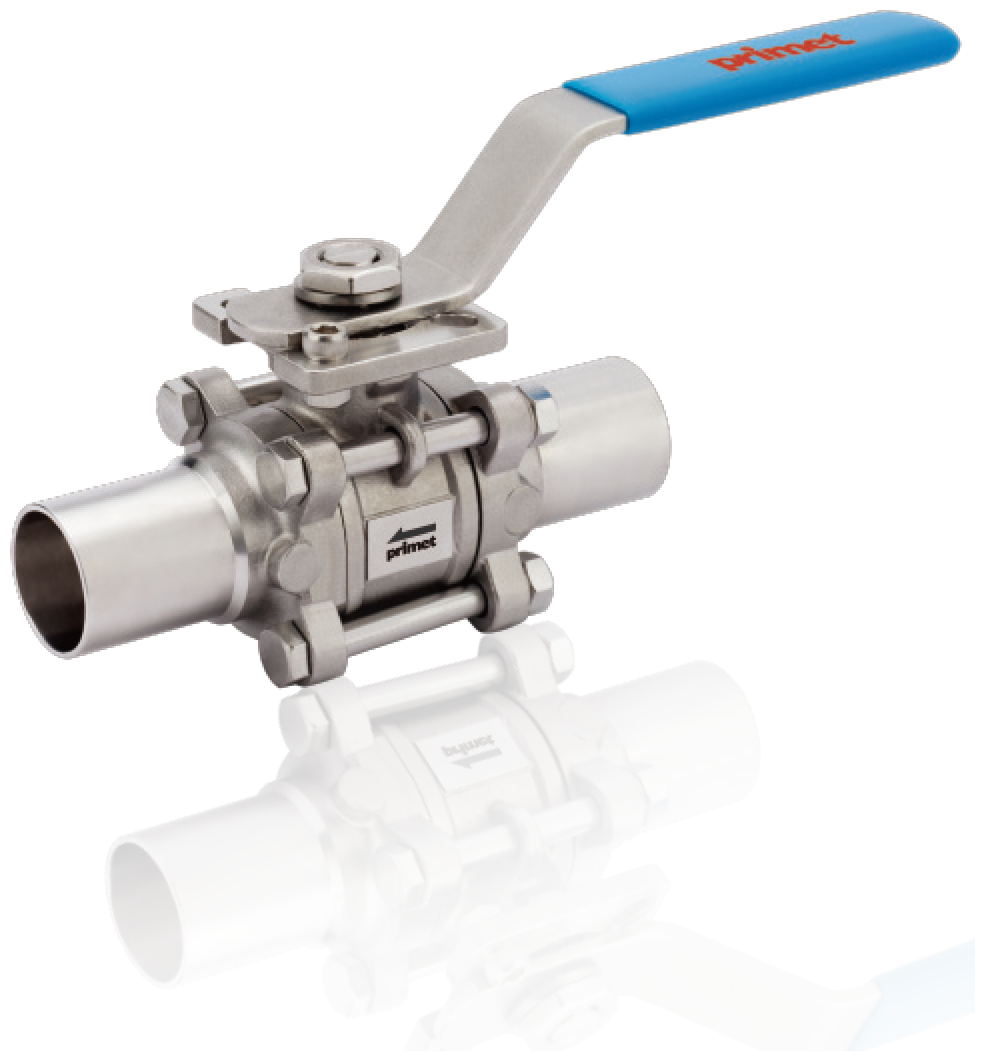

BLW는 Butt Weld타입의 프라이메트 볼 밸브 시리즈입니다。SUS316 바디이며、Sch5및Sch10으로、15A부터150A까지 가능합니다。

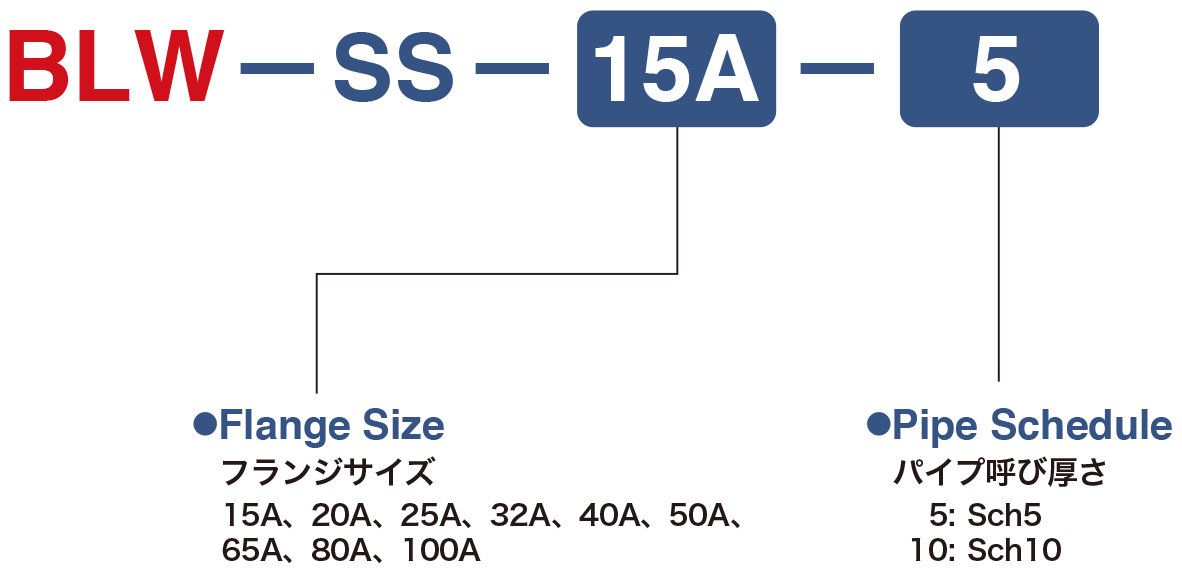

주문을 위한 사양형식

치수규격

Max.Operating Pressure 2MPa(G)
Operating Temp. Range -10～80℃
Pressurized Leakage Less than 0.1 std cc / sec (2MPa)
He Leakage※ Inboard ≦1×10-6 Pa・m3／sec Helium
Across Seat ≦1×10-5 Pa・m3／sec Helium

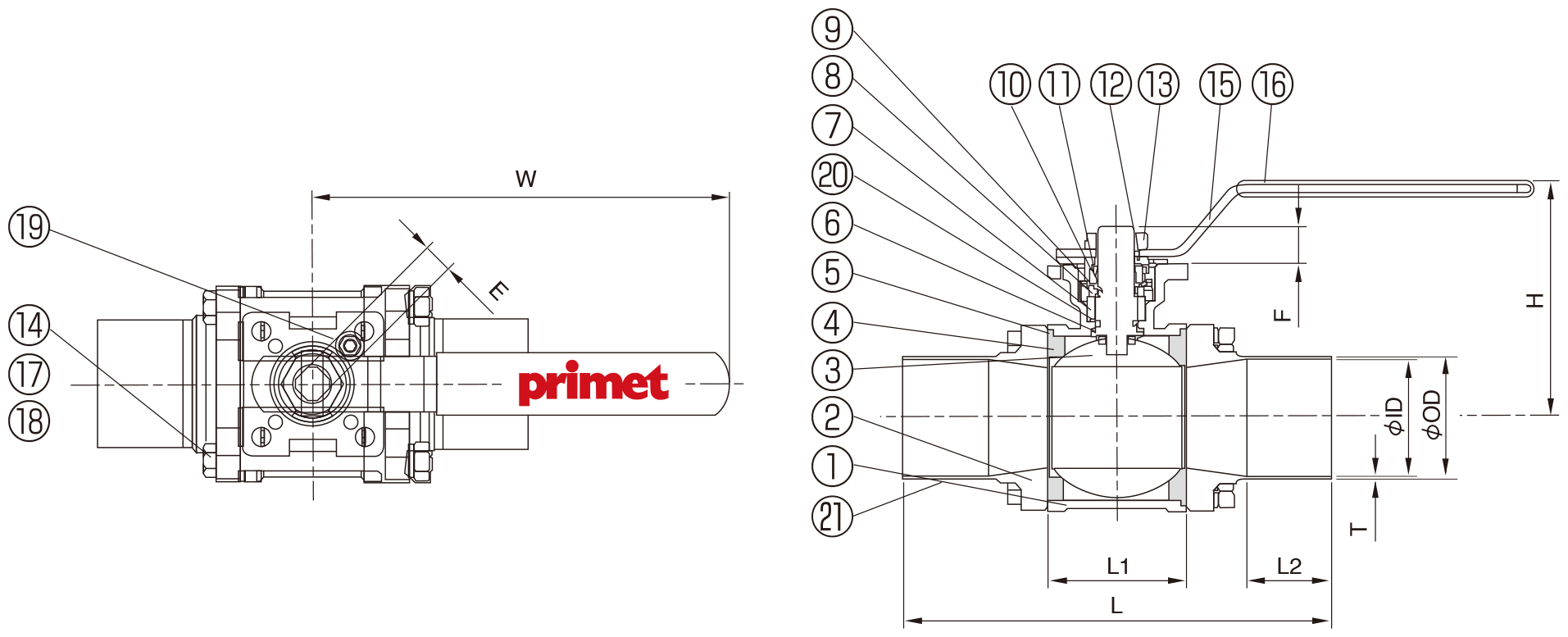

Material

No Part name Material Qty
1 Body ASTM A351 CF8M 1
2 Body Cap ASTM A351 CF8M 2
3 Ball ASTM A351 CF8M/316 1
4 Seat PTFE 2
5 Body Gasket PTFE 2
6 Thrust Washer PTFE 2
7 Stem Packing PTFE 1
8 Gland SUS304 1
9 Belleville Washer SUS301 2
10 Stem SUS316 1
11 Gland Nut SUS304 1
12 Spring Washer SUS304 1
13 Handle Nut SUS304 1
14 Body Bolt SUS304 4
15 Handle SUS304 1
16 Sleeve VINYL 1
17 Body Nut SUS304 4
18 Body Washer SUS304 4
19 Stop Pin SUS304 1
20 Stem O-Ring VITON 1
21 Pipe SUS316L 2

寸法

Unit(mm)
Size ΦID L ΦOD T H W E F L1 L2 ISO
5211		 CV Weigh
(kg)
15A 18.4 163 21.7 1.65 80.0 135.0 9.0 8.0 23.2 50 F03-F04 35 0.5
20A 23.9 171 27.2 84.0 30.5 50 50 0.7
25A 30.7 180 34.0 90.0 165.0 11.0 13.0 35.2 50 F04-F05 110 1.1
32A 39.4 219 42.7 93.0 41.9 65 200 1.7
40A 44.7 228 48.6 107.0 195.0 14.0 19.0 53.5 65 F05-F07 350 2.5
50A 57.2 244 60.5 116.0 64.3 65 650 3.7
65A 78.1 268 76.3 2.1 162.0 300.0 17.0 21.0 87.8 65 F07-F10 1100 7.8
80A 84.9 360 89.1 173.0 106.4 100 1600 12.0
100A 110.1 377 114.3 196.0 330.0 22.0 28.0 122.8 100 F10-F12 3000 21.8
※치수규격 are subjected to change without prior notice.
