PRIMET JAPAN CO,.LTD

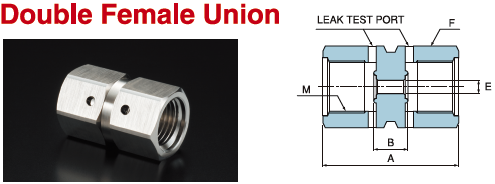

Double Female Union
Unit(mm)
| N/D(inch) | Part No. | A | E | F Hex Flat |
M |
|---|---|---|---|---|---|
| 1/4 | SDFU04 | 32.40 | 4.35 | 19.10 | 9/16-18 UNF |
| 3/8・1/2 | SDFU08 | 36.40 | 10.22 | 27.00 | 7/8-14 UNF |
Metal seal fittings | FEMALE UNION

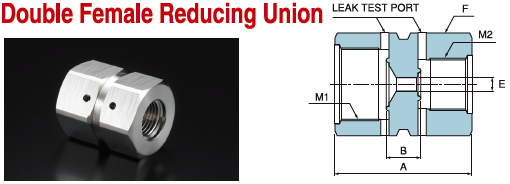

Double Female Reducing Union
Unit(mm)
| N/D(inch) | Part No. | A | B | E | F Hex Flat |
M1 | M2 | |
|---|---|---|---|---|---|---|---|---|
| 3/8・1/2 | 1/4 | SDFU08-04 | 34.60 | 6.00 | 4.35 | 27.00 | 7/8-14 UNF | 9/16-18 UNF |
