Metal seal fittings | UNION

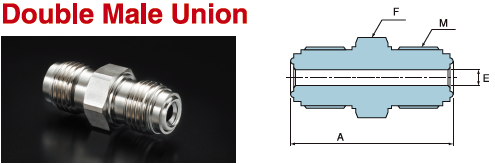

Double Male Union

Unit(mm)
N/D(inch) Part No. A E F
Hex Flat		 M
1/4 SDMU04 39.40 4.35 15.90 9/16-18 UNF
3/8・1/2 SDMU08 47.20 10.22 23.80 7/8-14 UNF

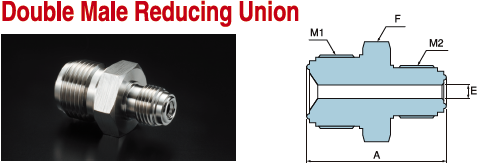

Double Male Reducing Union

Unit(mm)
N/D(inch) Part No. A B F
Hex Flat		 M1 M2
3/8・1/2 1/4 SDMU08-04 44.00 4.35 23.80 7/8-14 UNF 9/16-18 UNF

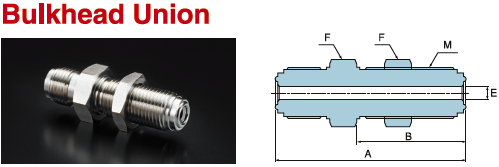

Bulkhead Union

Unit(mm)
N/D(inch) Part No. A B E F
Hex Flat		 M
1/4 SBHU04 56.60 33.40 4.35 19.10 9/16-18 UNF
3/8・1/2 SBHU08 65.30 37.60 10.22 27.00 7/8-14 UNF
3/4 SBHU12 86.80 42.80 15.75 38.00 1-1/4-18 UNF
1 SBHU16 90.00 45.00 22.10 46.00 1-1/2-20 UNF-2A

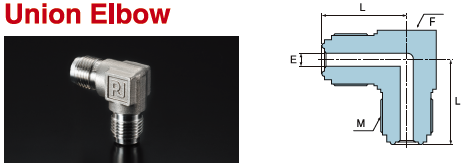

Union Elbow

Unit(mm)
N/D(inch) Part No. E F
Body Cube		 L M
1/4 SUE04 4.35 16.00 27.00 9/16-18 UNF
3/8・1/2 SUE08 10.22 24.00 36.80 7/8-14 UNF

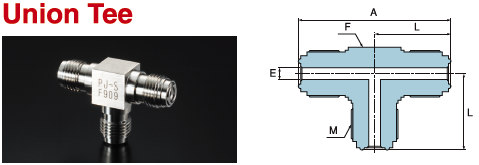

Union Tee

Unit(mm)
N/D(inch) Part No. A E F
Body Cube		 L M
1/4 SUT04 54.40 4.35 16.00 27.00 9/16-18 UNF
3/8・1/2 SUT08 73.60 10.22 24.00 36.80 7/8-14 UNF
