Metal seal fittings | COUPLING

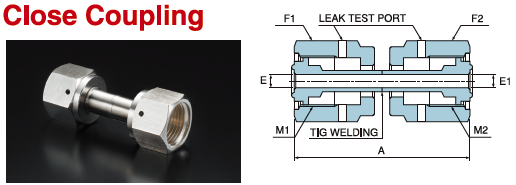

Close Coupling

Unit(mm)
N/D(inch) Part No. A E F1
Hex Flat		 F2
Hex Flat		 M1 M2
1/4 PCLC04 41.90 4.35 19.10 19.10 9/16-18 UNF 9/16-18 UNF
3/8・1/2 1/4 PCLC08-04 44.35 4.35 27.00 19.10 7/8-14 UNF 9/16-18 UNF
1/2 PCLC08 46.80 10.22 27.00 27.00 7/8-14 UNF 7/8-14 UNF
