메탈 실 피팅 | FEMALE UNION

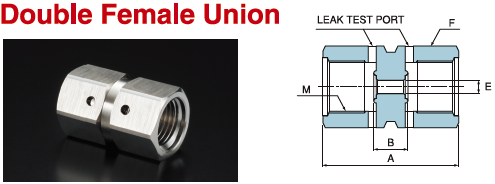

Double Female Union

Unit(mm)
N/D(inch) Part No. A E F
Hex Flat		 M
1/4 SDFU04 32.40 4.35 19.10 9/16-18 UNF
3/8・1/2 SDFU08 36.40 10.22 27.00 7/8-14 UNF

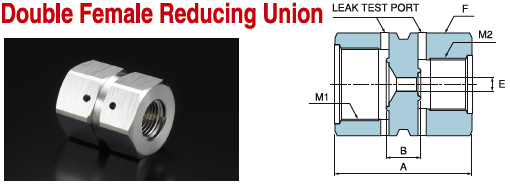

Double Female Reducing Union

Unit(mm)
N/D(inch) Part No. A B E F
Hex Flat		 M1 M2
3/8・1/2 1/4 SDFU08-04 34.60 6.00 4.35 27.00 7/8-14 UNF 9/16-18 UNF
