汽缸连接器 | JIS

为您的预订提供的规格参数

Type

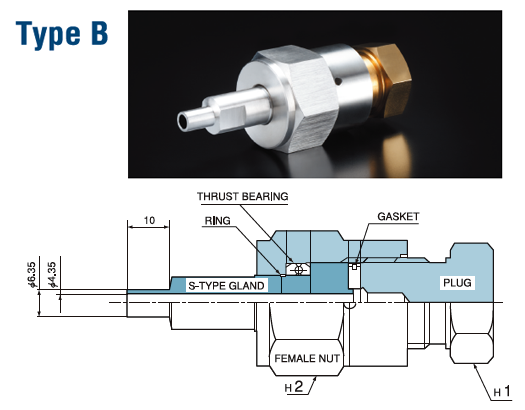

Type B

Parts List

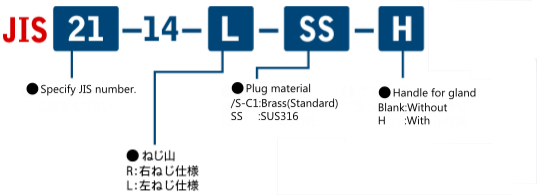

JIS No. Type Male＆Female Nut Std. Hex Flat Nut Bearing Gland Gasket Plug
H1 H2
JIS21-14-R B JIS21-14-OR H24 H30 FJS21R BR01 GL11S GT02A PG21R
/SPG21R
JIS21-14-L JIS21-14-OL FJS21L PG21L
/SPG21L
JIS22-14-R JIS22-14-OR FJS22R GL02S PG22R
/SPG22R
JIS22-14-L JIS22-14-OL FJS22L PG22L
/SPG22L
JIS23-14-R JIS23-14-OR H26 FJS23R PG23R
/SPG23R
JIS26-14-R JIS26-14-OR H29 H32 FJS26R BR02 GL03S GT03A PG26R
/SPG26R
JIS26-14-L JIS26-14-OL FJS26L PG26L
/SPG26L
■推荐的转矩价值
500kg・cm(35ft・lbs)
※with PCTFE gasket
