汽缸连接器 | GLAND

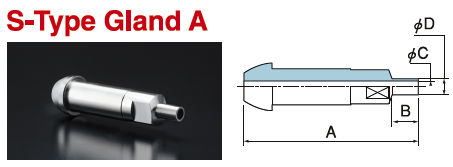

S-Type Gland A

Unit(mm)
Part No. A B C D
GL06S 65.30 10.00 4.35 6.35
GL08S

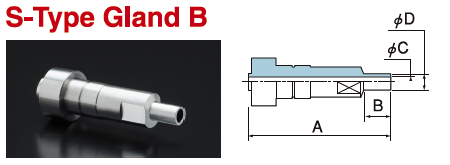

S-Type Gland B

Unit(mm)
Part No. A B C D
GL01S 52.50 10.00 4.35 6.35
GL02S 55.50
GL03S 58.00
GL07S 66.06
GL10S 66.70
GL11S 55.50

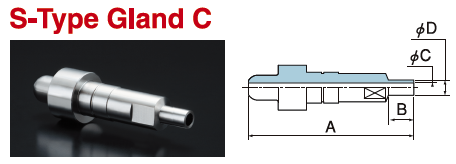

S-Type Gland C

Unit(mm)
Part No. A B C D
GL04S 66.20 10.00 4.35 6.35
GL05S 66.80
GL09S 66.70

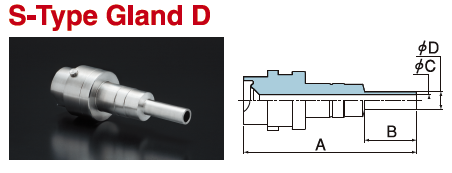

S-Type Gland D

Unit(mm)
Part No. A B C D
632-GL 63.8 19.05 4.35 6.35
634-GL
636-GL
638-GL
640-GL
642-GL
712-GL
714-GL
716-GL
718-GL
720-GL
722-GL
724-GL
726-GL
728-GL
