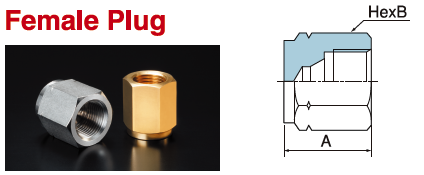

Female Plug
Unit(mm)/単位(mm)
| 部品番号 | A | B |
|---|---|---|
| PG296 | 32.50 | 27.00 |
| PG510 | 30.00 | |
| PG580 | 32.00 | |
| PG590 |
シリンダーコネクター | PLUG

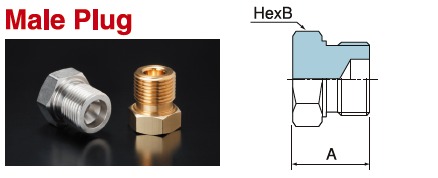

Male Plug
Unit(mm)/単位(mm)
| 部品番号 | A | B |
|---|---|---|
| PG320 | 31.00 | 24.00 |
| PG326 | 30.00 | |
| PG330 | 31.00 | |
| PG350 | 30.00 | |
| PG540 | 27.00 | |
| PG660 | 26.00 | 29.00 |
| PG670 | ||
| PG678 | ||
| PG679 | ||
| PG21R | 31.00 | 24.00 |
| PG21L | ||
| PG22R | ||
| PG22L | ||
| PG23R | 26.00 | |
| PG26R | 29.00 | |
| PG26L |

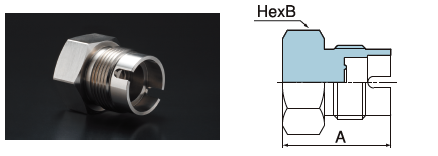

Unit(mm)/単位(mm)
| 部品番号 | A | B |
|---|---|---|
| SPG632 | 39.00 | 32.00 |
| SPG634 | ||
| SPG636 | ||
| SPG638 | ||
| SPG640 | ||
| SPG642 | ||
| SPG712 | ||
| SPG714 | ||
| SPG716 | ||
| SPG718 | ||
| SPG720 | ||
| SPG722 | ||
| SPG724 | ||
| SPG726 | ||
| SPG728 |
※標準材質：SUS316
