金属密封件 | NUT/GASKET

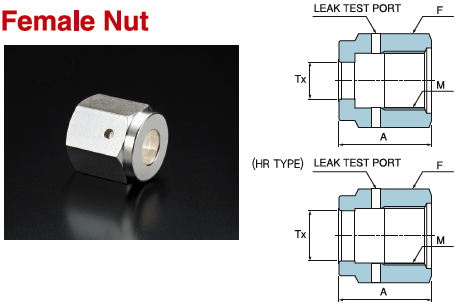

Female Nut

Unit(mm)
N/D(inch) Part No. A F
Hex Flat		 Tx M
1/4 SFN04 20.50 19.10 9.00 9/16-18 UNF
3/8・1/2 SFN08 22.50 27.00 15.30 7/8-14 UNF
3/4 SFN12 28.40 38.00 22.60 1-1/4-18 UNF
1 SFN16 34.00 46.00 30.50 1-1/2-20 UNF-2B
(HR TYPE)
Unit(mm)
N/D(inch) Part No. A F
Hex Flat		 Tx M
3/8・1/4 SFN04HR 20.50 19.10 11.50 9/16-18 UNF

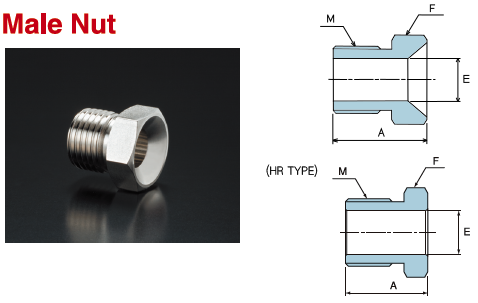

Male Nut

Unit(mm)
N/D(inch) Part No. A F
Hex Flat		 E M
1/4 SMN04 18.30 16.90 9.00 9/16-18 UNF
3/8・1/2 SMN08 20.00 23.80 15.30 7/8-14 UNF
3/4 SMN12 25.40 35.00 22.60 1-1/4-18 UNF
1 SMN16 30.20 41.00 30.50 1-1/2-20 UNF-2A
(HR TYPE)
Unit(mm)
N/D(inch) Part No. A F
Hex Flat		 E M
1/4 SMN04HR-LT 15.10 16.90 9.75 9/16-18 UNF

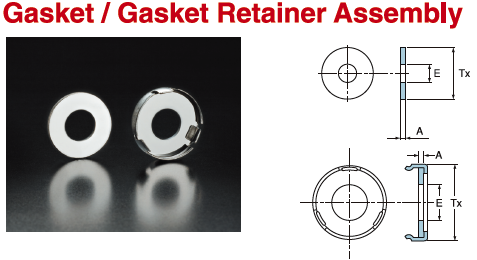

Gasket / Gasket Retainer Assembly

Unit(mm)
N/D(inch) Part No. A E Tx
1/4 NGT04 0.70 5.59 11.94
3/8・1/2 NGT08 0.75 11.18 19.81
※NiおよびSUSの供給が可能です。
Unit(mm)
N/D(inch) Part No. A E Tx
1/4 NGT04R 0.70 5.59 12.40
3/8・1/2 NGT08R 0.75 11.18 19.90
