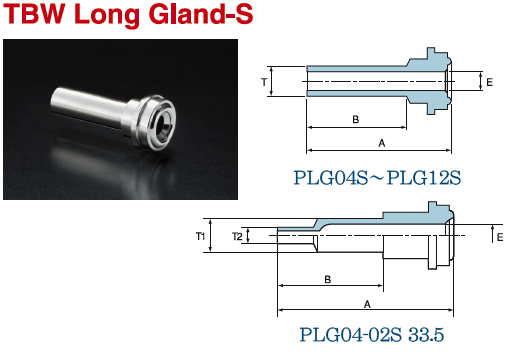

TBW Long Gland-S

Unit(mm)
N/D(inch) Part No. A B E T
1/4 PLG04S 28.00 19.05 4.35 6.35
1/2・1/4 PLG08-04S 28.50 19.05 4.35 6.35
1/2・3/8 PLG08-06S 28.50 19.05 7.53 9.53
1/2 PLG08S 28.50 19.05 10.22 12.70
3/4 PLG12S 32.00 20.60 15.75 19.05
Unit(mm)
N/D(inch) Part No. A B E T1 T2
1/4・1/8 PLG04-02S 33.5 33.50 20.00 4.35 6.35 3.18

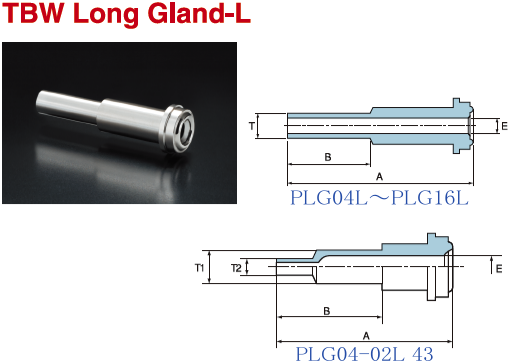

TBW Long Gland-L

Unit(mm)
N/D(inch) Part No. A B E T
1/4 PLG04L 43.20 19.05 4.35 6.35
1/2・1/4 PLG08-04L 45.50 19.05 4.35 6.35
1/2・3/8 PLG08-06L 45.50 19.05 7.53 9.53
1/2 PLG08L 45.50 19.05 10.22 12.70
3/4 PLG12L 52.00 20.60 15.75 19.05
1 PLG16L 58.90 19.05 22.10 25.40
Unit(mm)
N/D(inch) Part No. A B E T1 T2
1/4・1/8 PLG04-02L 43 43.00 20.00 4.35 6.35 3.18

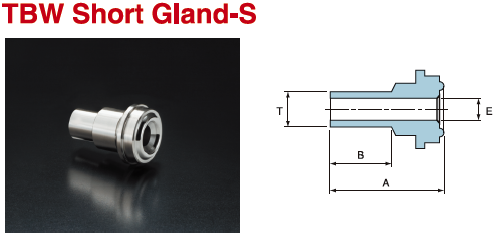

TBW Short Gland-S

Unit(mm)
N/D(inch) Part No. A B E T
1/4 PSG04S 18.95 10.00 4.35 6.35
1/2・1/4 PSG08-04S 19.45 10.00 4.35 6.35
1/2・3/8 PSG08-06S 19.45 10.00 7.53 9.53
1/2 PSG08S 19.45 10.00 10.22 12.70

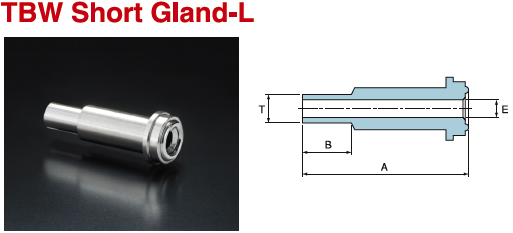

TBW Short Gland-L

Unit(mm)
N/D(inch) Part No. A B E T
1/4 PSG04L 34.15 10.00 4.35 6.35
1/2・1/4 PSG08-04L 36.45 10.00 4.35 6.35
1/2・3/8 PSG08-06L 36.45 10.00 7.53 9.53
1/2 PSG08L 36.45 10.00 10.22 12.70

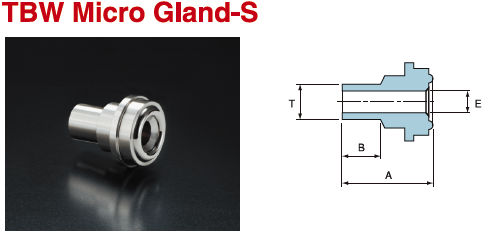

TBW Micro Gland-S

Unit(mm)
N/D(inch) Part No. A B E T
1/4 PMG04S 15.30 6.35 4.35 6.35
1/2・1/4 PMG08-04S 15.80 6.35 4.35 6.35
1/2・3/8 PMG08-06S 15.80 6.35 7.53 9.53
1/2 PMG08S 15.80 6.35 10.22 12.70

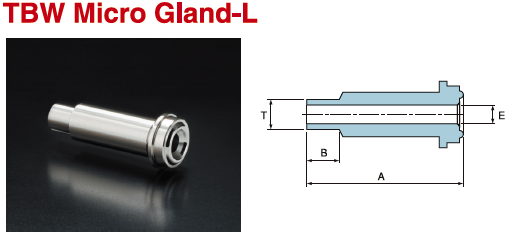

TBW Micro Gland-L

Unit(mm)
N/D(inch) Part No. A B E T
1/4 PMG04L 30.50 6.35 4.35 6.35
1/2・1/4 PMG08-04L 32.80 6.35 4.35 6.35
1/2・3/8 PMG08-06L 32.80 6.35 7.53 9.53
1/2 PMG08L 32.80 6.35 10.22 12.70
