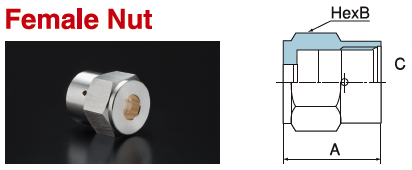

Female Nut
Unit(mm)
Part No. | A | Hex B | C |
---|---|---|---|
F0830R | 35.00 | 30.00 | 0.830-14NGO-RH-INT |
F0830L | 0.830-14NGO-LH-INT | ||
F0908R | 0.908-14NGO-RH-INT | ||
F1035R | 36.00 | 32.00 | 1.035-14NGO-RH-INT |
F1035L | 1.035-14NGO-LH-INT | ||
FJS21R | 35.00 | 30.00 | JIS21-14-OR |
FJS21L | JIS21-14-OL | ||
FJS22R | JIS22-14-OR | ||
FJS22L | JIS22-14-OL | ||
FJS23R | JIS23-14-OR | ||
FJS26R | 36.00 | 32.00 | JIS26-14-OR |
FJS26L | JIS26-14-OL |
