실린터 컨넥터 | DISS

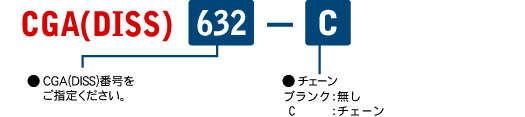

주문을 위한 사양형식

Type

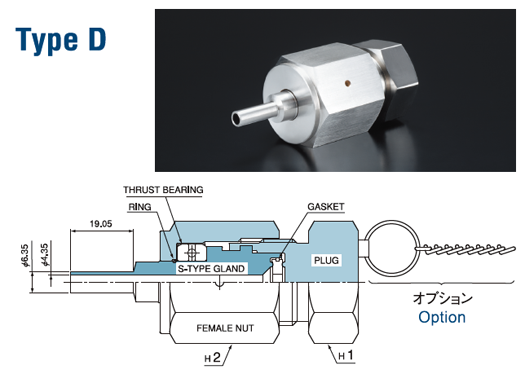

Type D

Parts List

CGA DISS
No.		 Type Male＆Female Nut Std. Hex Flat Nut Bearing Gland Gasket Plug
H1 H2
CGA632 D 1.035-14NGO
-RH-INT		 H32 H32 SFN630 BR02 632-GL PGT630SUS PCTFE Gasket with SUS Ring SPG632
CGA634 634-GL SPG634
CGA636 636-GL SPG636
CGA638 638-GL SPG638
CGA640 640-GL SPG640
CGA642 642-GL SPG642
CGA712 1.125-14NGO
-RH-INT		 H35 SFN710 712-GL SPG712
CGA714 714-GL SPG714
CGA716 716-GL SPG716
CGA718 718-GL SPG718
CGA720 720-GL SPG720
CGA722 722-GL SPG722
CGA724 724-GL SPG724
CGA726 726-GL SPG726
CGA728 728-GL SPG728
