실린터 컨넥터 | CGA

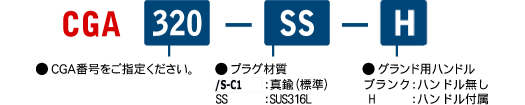

주문을 위한 사양형식

Type

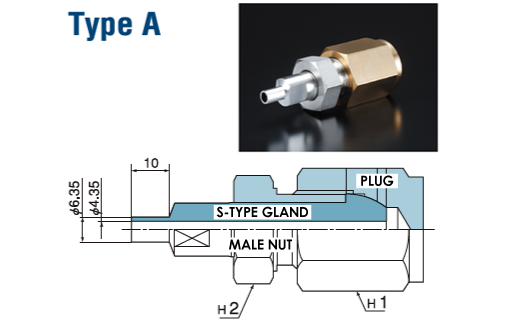

Type A

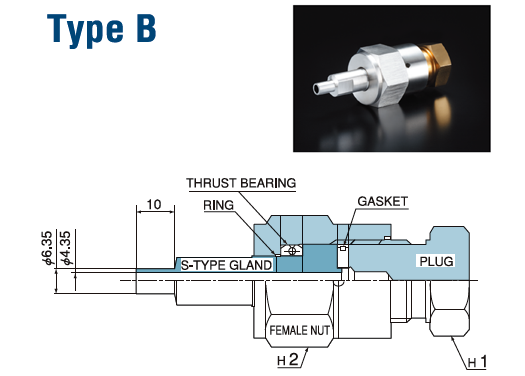

Type B

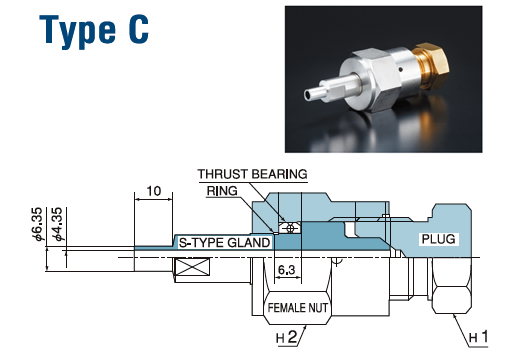

Type C

Parts List

CGA No. Type Male＆Female Nut Std. Hex Flat Nut Bearing Gland Gasket Plug
H1 H2
CGA296 A 0.803-14UNS
-2A-RH-EXT		 H27 H24 M0803R X GL08S X PG296
/SPG296
CGA320 B 0.830-14NGO
-RH-INT		 H24 H30 F0830R BR01 GL01S GT01A PG320
/SPG320
CGA326 C 0.830-14NGO
-RH-INT		 H24 H30 F0830R BR01 GL04S X PG326
/SPG326
CGA330 B 0.830-14NGO
-LH-INT		 H24 H30 F0830L BR01 GL01S GT01A PG330
/SPG330
CGA350 C 0.830-14NGO
-LH-INT		 H24 H30 F0830L BR01 GL05S X PG350
/SPG350
CGA510 A 0.880-14NGO
-LH-EXT		 H30 H24 M0880L X GL06S X PG510
/SPG510
CGA540 C 0.908-14NGO
-RH-INT		 H27 H30 F0908R BR01 GL09S X PG540
/SPG540
CGA580 A 0.960-14NGO
-RH-EXT		 H32 H27 M0960R X GL06S X PG580
/SPG580
CGA590 A 0.960-14NGO
-LH-EXT		 H32 H27 M0960L X GL06S X PG590
/SPG590
CGA660 B 1.035-14NGO
-RH-INT		 H29 H32 F1035R BR02 GL03S GT03A PG660
/SPG660
CGA670 B 1.035-14NGO
-LH-INT		 H29 H32 F1035L BR02 GL03S GT03A PG670
/SPG670
CGA678 B 1.035-14NGO
-LH-INT		 H29 H32 F1035L BR02 GL07S GT01B PG678
/SPG678
CGA679 B 1.035-14NGO
-LH-INT		 H29 H32 F1035L BR02 GL10S GT05B PG679
/SPG679
■Recommended torque value
TypeA、C ：550kg・cm(40ft・lbs)
TypeB　　：500kg・cm(35ft・lbs)
