Protection Filter PF Series

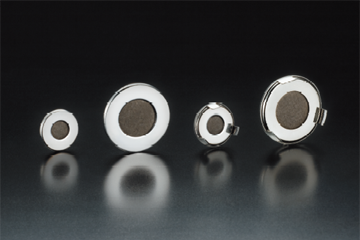

Protection Filter, PF series has two functions as a metal gasket and gas filter. This allows integration of gas filter without adding length to gas system. 0.3μm or 1μm for particle retention and 316L stainless steel or Nickel gasket material are availablr. Those PF series protect gas components, such as valce, mass flow controllers and regulators from particle damage.

Features and advantage

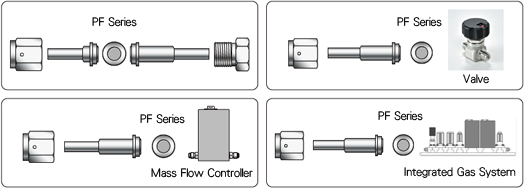

  • Fits into a metal seal fittings as a gasket.
  • Extends the life time of high particle retention gas filter by the installation.
  • Saves the cost of maintenance for valve, MFC and Regulator.

Application

※Available for othe company's gasket seal fittings.

Specification

Filtration Accuracy 0.3μm、1μm
Material Gasket：SUS316L Stainless steell or Nickel
Filter：SUS316L Stainless steell
Max. Operating Pressure 0.98MPa
Fitting 1/4"、3/8"（1/2" common）Supports Metal seal fittings

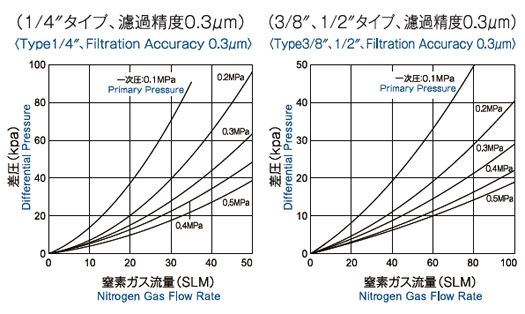

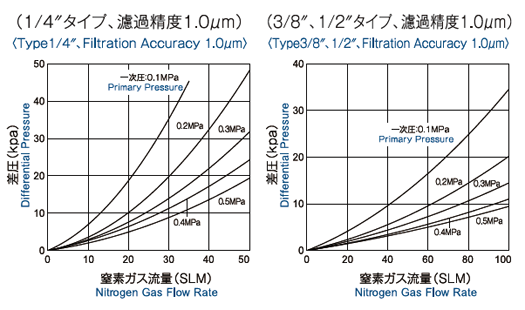

Flow Rate Characteristics

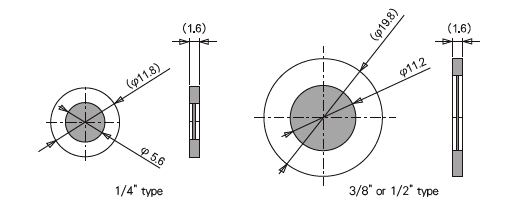

Dimensions

■1/4" type ※Retainer material is made of 316L stainless steel.

Model Without Retainer PFGS04-03 PFGN04-03 PFGS04-10 PFGN04-10
With Retainer PFGS04-03R PFGN04-03R PFGS04-10R PFGN04-10R
Filtration Accuracy 0.3μm 1.0μm
Max. Operating Pressure 0.98Mpa
Filter Materials SUS316L
Gasket Materials SUS316L Nickel SUS316L Nickel

■3/8" or 1/2" type（common） ※Retainer material is made of 316L stainless steel.

Model Without Retainer PFGS08-03 PFGN08-03 PFGS08-10 PFGN08-10
With Retainer PFGS08-03R PFGN08-03R PFGS08-10R PFGN08-10R
Filtration Accuracy 0.3μm 1.0μm
Max. Operating Pressure 0.98Mpa
Filter Materials SUS316L
Gasket Materials SUS316L Nickel SUS316L Nickel

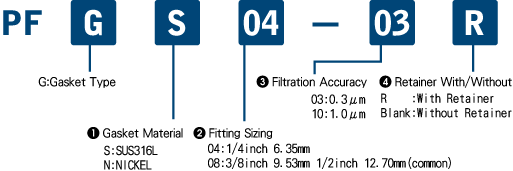

Model specifications for the order request.
