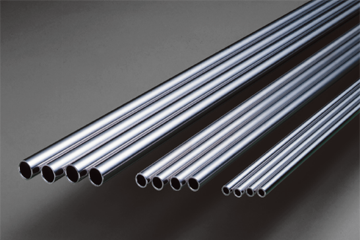

Primet Tube

Primet tube sizes are available as the following table. There are 1/4 inch O.D. to 3/4 inch O.D. as our standard sizes. Stainless steel 316L tubes are also available. Please contact us or our agent if you request large size tube.

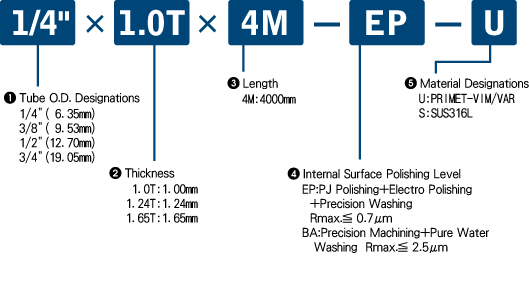

Model specifications for the order request.

Specification

Part No. Size Outside Diameter Wall Thickness Length Roundness
mm Tolerance mm Tolerance mm Tolerance
1/4"×1.0T×4M-□-□ 1/4" 6.35 +0.05
-0		 1.0 ±0.05 4.000 +5.0
-0		 ≦1/1000
3/8"×1.0T×4M-□-□ 3/8" 9.53 +0.06
-0		 1.0 ±0.05 4.000 +5.0
-0		 ≦1/1000
1/2"×1.0T×4M-□-□ 1/2" 12.70 +0.07
-0		 1.00
1.24		 ±0.05
±10%		 4.000 +5.0
-0		 ≦1/1000
1/2"×1.24T×4M-□-□
3/4"×1.65T×4M-□-□ 3/4" 19.05 +0.09
-0		 1.65
1.24		 ±10% 4.000 +5.0
-0		 ≦1/1000
3/4"×1.24T×4M-□-□
