용접 피팅 | Micro Type

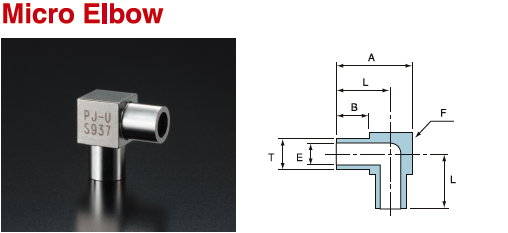

Micro Elbow

Unit(mm)
T(inch) Part No. A B E F
Body Cube		 L
1/8 P2M04-9 14.29 6.35 1.75 7.94 10.32
1/4 P4M04-9 14.29 6.35 4.35 7.94 10.32
3/8 P6M04-9 17.46 6.35 7.53 11.11 11.91
1/2 P8M04-9 20.64 6.35 10.22 14.29 13.50

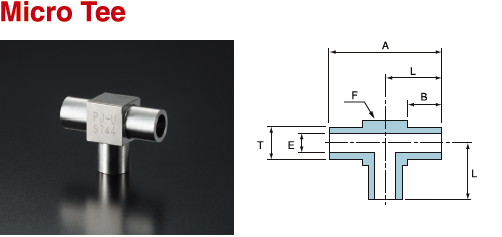

Micro Tee

Unit(mm)
T(inch) Part No. A B E F
Body Cube		 L
1/8 P2M04-3 20.64 6.35 1.75 7.94 10.32
1/4 P4M04-3 20.64 6.35 4.35 7.94 10.32
3/8 P6M04-3 23.81 6.35 7.53 11.11 11.91
1/2 P8M04-3 26.99 6.35 10.22 14.29 13.50

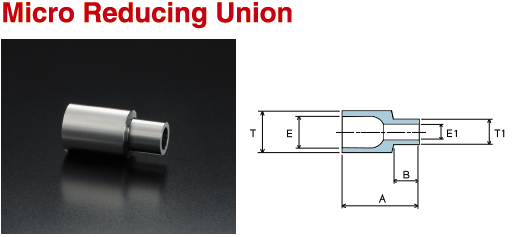

Micro Reducing Union

Unit(mm)
T(inch) T1(inch) Part No. A B E E1
1/4 1/8 P4M04-6-2 19.05 6.35 4.35 1.75
3/8 1/4 P6M04-6-4 19.05 6.35 7.53 4.35
1/2 1/4 P8M04-6-4 19.05 6.35 10.22 4.35
1/2 3/8 P8M04-6-6 19.05 6.35 10.22 7.53

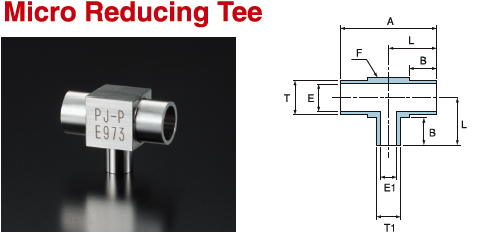

Micro Reducing Tee

Unit(mm)
T(inch) T1(inch) Part No. A B E E1 F
Body Cube		 L
1/4 1/8 P4M04-3-2 20.64 6.35 4.35 1.75 7.94 10.32
3/8 1/4 P6M04-3-4 23.81 6.35 7.53 4.35 11.11 11.91
1/2 1/4 P8M04-3-4 26.99 6.35 10.22 4.35 14.29 13.50
1/2 3/8 P8M04-3-6 26.99 6.35 10.22 7.53 14.29 13.50

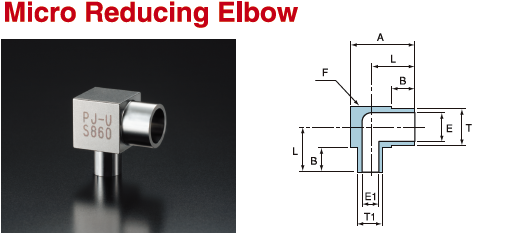

Micro Reducing Elbow

Unit(mm)
T(inch) T1(inch) Part No. A B E E1 F
Body Cube		 L
1/4 1/8 P4M04-9-2 14.29 6.35 4.35 1.75 7.94 10.32
3/8 1/4 P6M04-9-4 17.46 6.35 7.53 4.35 11.11 11.91
1/2 1/4 P8M04-9-4 20.64 6.35 10.22 4.35 14.29 13.50
1/2 3/8 P8M04-9-6 20.64 6.35 10.22 7.53 14.29 13.50

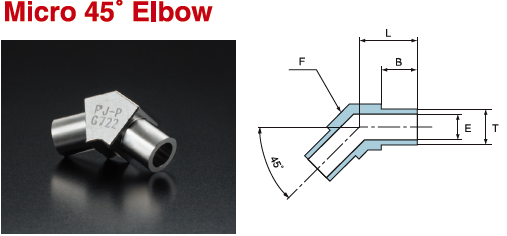

Micro 45° Elbow

Unit(mm)
T(inch) Part No. B E F
Body Cube		 L
1/4 P4M04-5 6.35 4.35 7.94 10.31
3/8 P6M04-5 6.35 7.53 11.11 11.91
1/2 P8M04-5 6.35 10.22 14.29 13.49

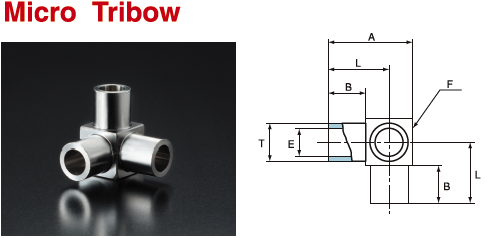

Micro Tribow

Unit(mm)
T(inch) Part No. A B E F
Body Cube		 L
1/4 P4M04-91 14.29 6.35 4.35 7.94 10.32
3/8 P6M04-91 17.46 6.35 7.53 11.11 11.91
1/2 P8M04-91 20.64 6.35 10.22 14.29 13.50

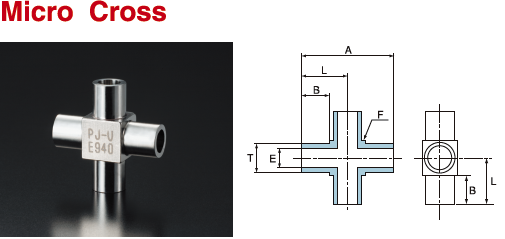

Micro Cross

Unit(mm)
T(inch) Part No. A B E F
Body Cube		 L
1/8 P2M04-4 20.64 6.35 1.75 7.94 10.32
1/4 P4M04-4 20.64 6.35 4.35 7.94 10.32
3/8 P6M04-4 23.81 6.35 7.53 11.11 11.91
1/2 P8M04-4 26.99 6.35 10.22 14.29 13.50
